British Columbia Utilities Commission
Report to
The Government of British Columbia
on the Impact of
BC Hydro and FortisBC’s Residential Inclining Block Rates
REPORT
March 28, 2017
This report was prepared for the Minister of Energy and Mines and Minister Responsible for Core Review. |
British Columbia Utilities Commission Sixth Floor, 900 Howe Street Vancouver, BC V6Z 2N3
Email: Commission.Secretary@bcuc.com Phone: 604-660-4700 Toll Free: 1-800-663-1385 |
TABLE OF CONTENTS
Page No.
1.0 Scope and process of this report
3.0 Question 2 – What evidence is available about high bill impacts on low income customers?

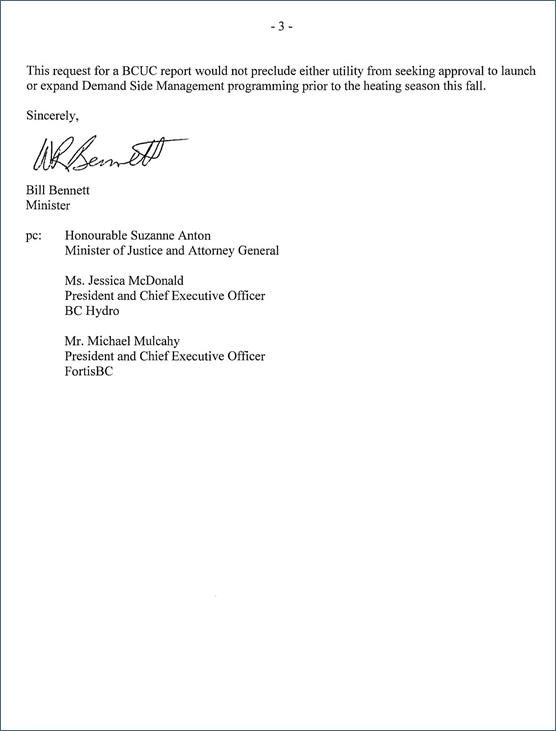

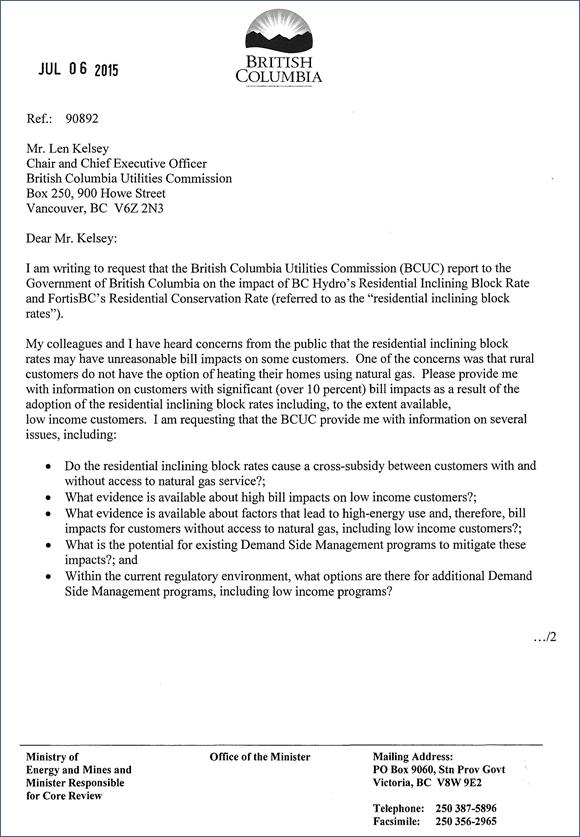

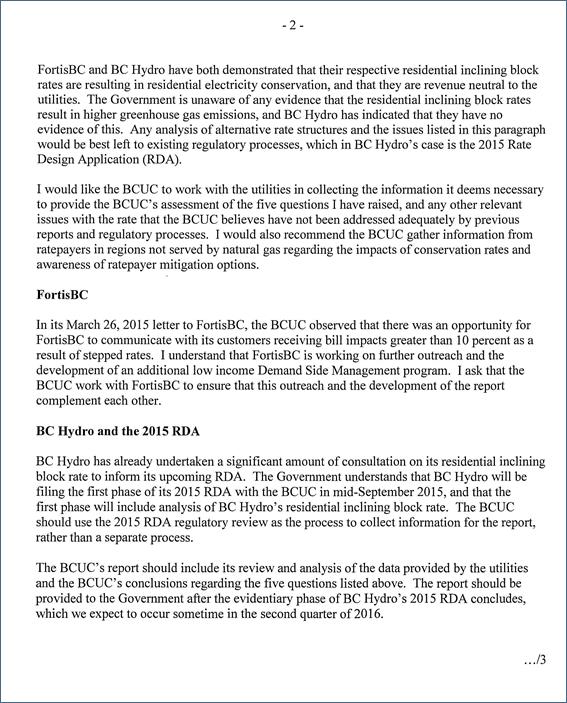

APPENDIX B – Minister Bennett’s Letter to BCUC

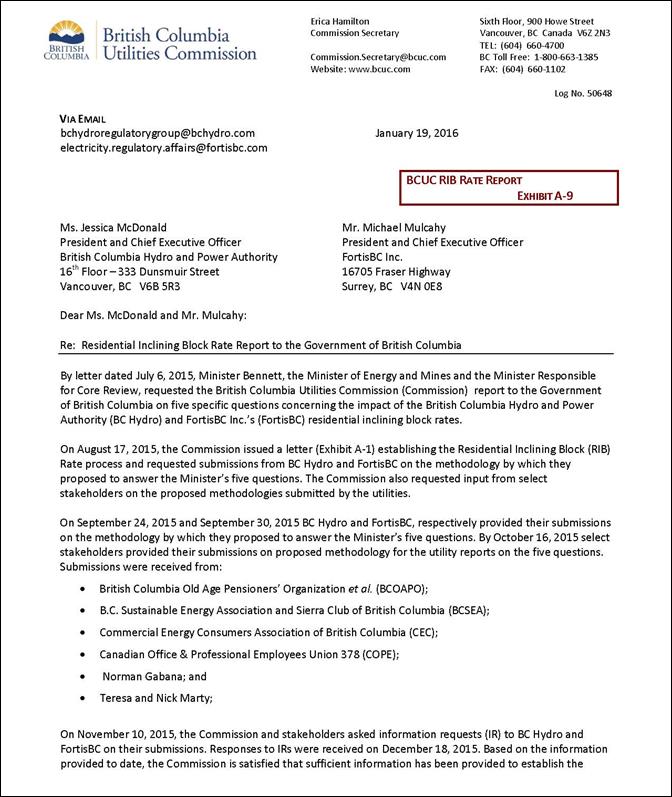

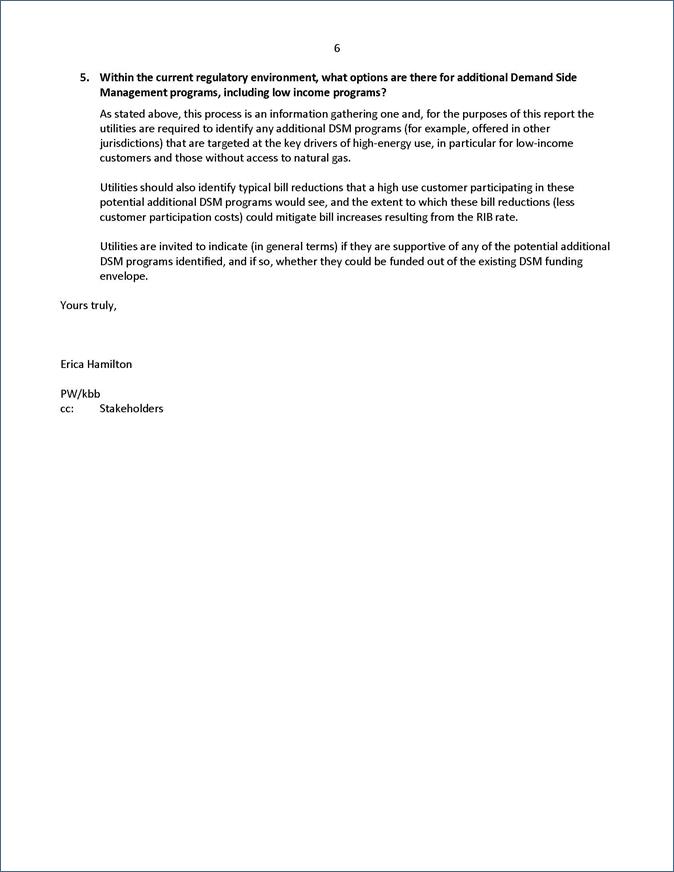

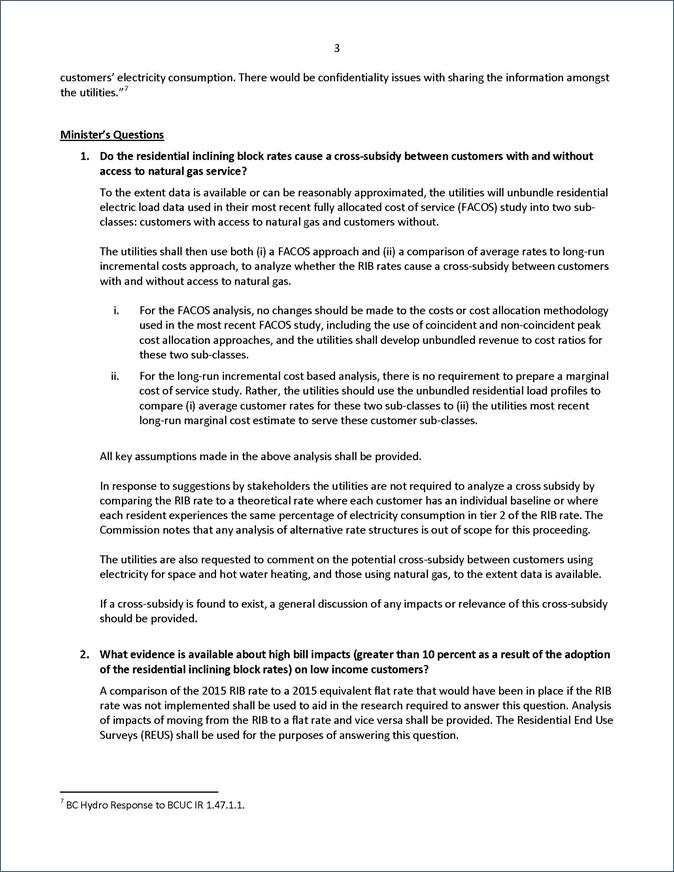

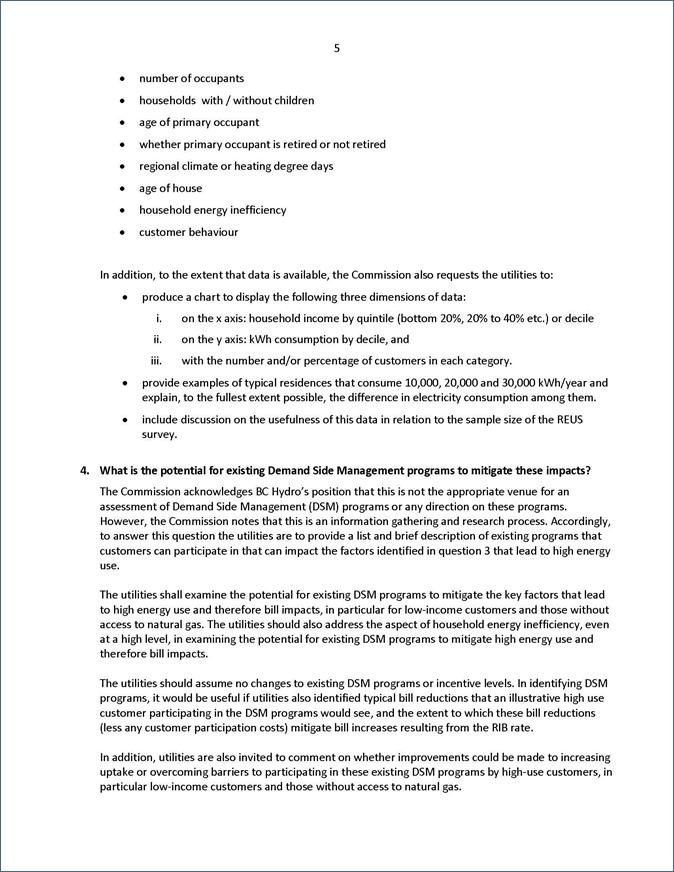

APPENDIX C – Detailed description of BCUC process to gather information for report

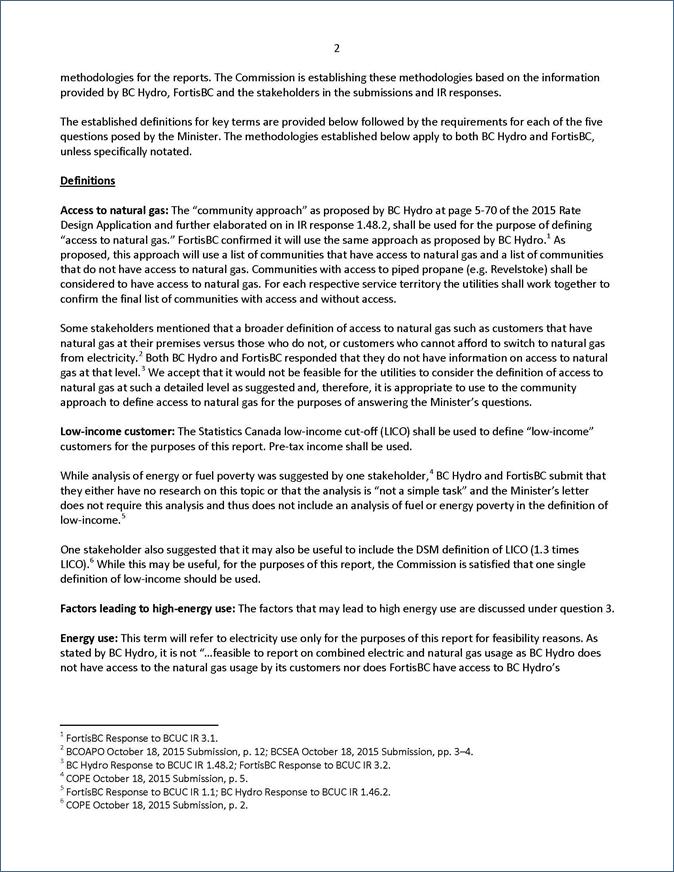

APPENDIX D – Definitions and methodology for utility reports
APPENDIX E – DSM funding analysis

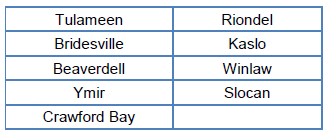

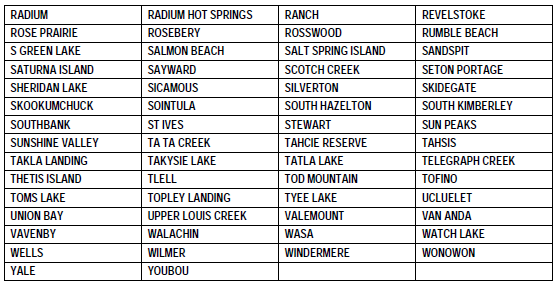

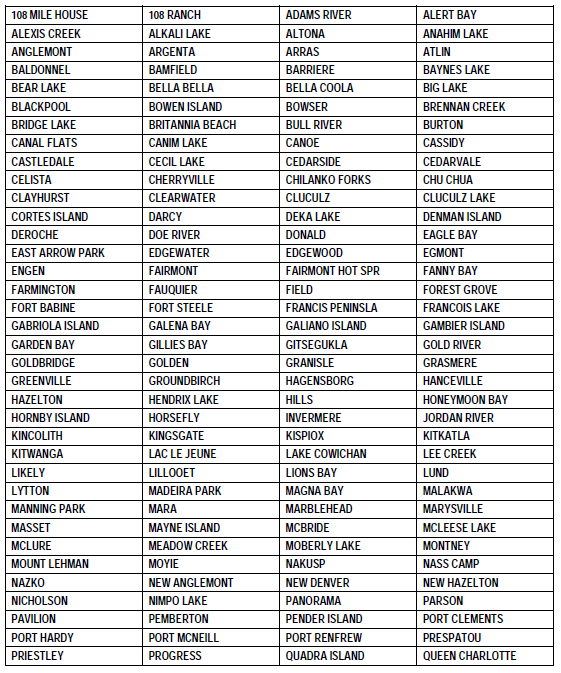

APPENDIX G – List of Communities without access to natural gas.
The Minister of Energy and Mines and Minister Responsible for Core Review has asked the Commission to report on the impact of the British Columbia Hydro and Power Authority (BC Hydro) Residential Inclining Block Rate and the FortisBC Inc. (FortisBC) Residential Conservation Rate, collectively referred to as the residential inclining block (RIB) rates. Complaints have been received regarding “unreasonable bill impacts” on some customers, in particular rural customers who do not have access to natural gas to heat their homes and low-income customers.
Replacing the previous flat rate structure, the RIB rates were introduced to incent consumers to conserve energy and promote energy efficiency, and there is evidence that this is indeed happening. The RIB rates provide this incentive by charging customers more for the electricity they use beyond a certain “step” (1,350 kWh per billing period for BC Hydro, 1,600 kWh for Fortis BC), but at the same time giving all residential customers a reduction in the price they pay for their use below that step.
It has been suggested that the RIB rates may cause a cross-subsidy, whereby people living in areas without access to natural gas, and who are therefore more likely to heat their homes and hot water with electricity, subsidize people living in areas which do have access to natural gas. The Commission has considered this question from multiple perspectives, and determined that there is no evidence to support this theory. There is a “break-even point” (approximately 2,300 kWh per billing period for BC Hydro and 2,500 kWh per billing period for FortisBC) above which the RIB rate bill is higher than the equivalent flat-rate bill, and below which the RIB rate bill will be lower. But this does not constitute a subsidy, and neither is it unjust, unreasonable, unduly discriminatory or unduly preferential, the tests the Commission must use when setting rates.
That said, any customer who uses electricity for space heating and hot water will be likely to use more electricity than one who does not, since these are two of the prime determinants of high residential electricity use. While it is true that customers without access to natural gas are more likely to use electricity for space heating and hot water, it is also important to remember that some customers who do have access to natural gas use electricity for space heating and hot water as well. And, even in areas without access to natural gas, most customers would pay more under the flat rate than the RIB rate.
In winter, electric heating customers will use more electricity than in summer, and be more likely to exceed the break-even point where they pay more under the RIB rate than they would under the flat rate. In a colder-than-average winter, heating bills of all kinds, both electricity and natural gas, will be correspondingly higher. To illustrate, we have looked at a hypothetical FortisBC customer using 10,000 kWh of electricity in a winter billing period. We calculate that this results in an electricity bill of a little less than $1,500. If they were taking service at an equivalent flat rate, the bill would still be almost $1,200. While 10,000 kWh represents five times the average bill for a FortisBC customer, 5,000 kWh use would result in a RIB-rate bill of just over $700, which is only about $100 more if the customer was on the RIB rate than if they were on a flat rate.
Furthermore, for some of these customers, their summer bills are actually lower under the RIB rate structure than they would be under a flat rate structure. To evaluate the overall effect more comprehensively, it is necessary to look at total annual electricity cost and not just winter bills. When considering the annual cost, we find, for example, that 88 percent of BC Hydro low-income customers are better off overall under the RIB rate compared to the flat rate, and only 1 percent of the same population were more than 10 percent worse off.
While 65.2 percent of FortisBC low-income customers are better off under the RIB rate than the flat rate, FortisBC estimates that 9.7 percent of its low-income customers are more than 10 percent worse off. There is a significant difference between the FortisBC and BC Hydro results in this regard. Based on the evidence available, the difference might be due at least in part to the mix of housing stock across the Province. In the FortisBC region, proportionately more low-income customers live in single family dwellings, and fewer in apartments, leading to higher electricity use.
The two utilities offer a range of demand-side management (DSM) programs aimed at encouraging customers to conserve energy and promote energy efficiency. These include programs tailored for low-income customers that are more affordable as they do not require an investment on the part of the customer. The Commission believes that there is potential for these DSM programs to reduce customers’ electricity use, and hence mitigate the effects of the higher tier of the RIB rate. In fact, the very design of the RIB rate is intended to provide increased incentives for customers to take advantage of the DSM programs – customers reducing energy use in the higher-tier rate save more than if they were under the flat rate.
Having said that, there is more that could be done to promote the existing DSM programs and to encourage customers to participate. There is also the potential for additional programs and innovative financing programs that could further help customers, in particular low-income customers, to conserve energy and reduce their electricity bills. The two utilities could also look to develop DSM programs intended specifically to assist high-use households (including high-use/low-income households) located in areas without access to natural gas to reduce their electricity consumption. While there are limits on BC Hydro’s total level of DSM funding, there are opportunities to reallocate DSM funding towards targeted groups of residential customers.
1.0 Scope and process of this report
On July 6, 2015, the British Columbia Minister of Energy and Mines and Minister Responsible for Core Review (Minister) requested the British Columbia Utilities Commission (Commission, BCUC) report to government on the impact of the British Columbia Hydro and Power Authority (BC Hydro) Residential Inclining Block Rate and the FortisBC Inc. (FortisBC) Residential Conservation Rate (together, the residential inclining block [RIB] electricity rates).[1]
1.1 Scope
The Minister expressed that he had “heard concerns from the public that the residential inclining block rates may have unreasonable bill impacts on some customers” including rural customers who do not have the option to heat their homes with natural gas.[2] The Minister requested information on customers, including low-income customers, with bill impacts greater than 10 percent as a result of the implementation of the RIB rates. More specifically, the Minister tasked the Commission to prepare a report to address the following five questions:
1. Do the residential inclining block rates cause a cross-subsidy between customers with and without access to natural gas service?
2. What evidence is available about high bill impacts on low income customers?
3. What evidence is available about factors that lead to high-energy use and, therefore, bill impacts for customers without access to natural gas, including low income customers?
4. What is the potential for existing Demand Side Management programs to mitigate these impacts?
5. Within the current regulatory environment, what options are there for additional Demand Side Management programs, including low income programs?
The Minister also recommended the BCUC gather information from ratepayers in regions not served by natural gas regarding the impacts of the RIB rates and awareness of ratepayer mitigation options.
1.2 Out of scope issues
The Minister set certain issues out of the scope of this review process. Specifically, the Minister stated that any analysis of higher greenhouse gas emissions, electricity conservation, revenue neutrality resulting from the residential inclining block rates and any analysis of alternative rate structures are best left to existing regulatory processes other than this review process.[3]
Given the Minister’s request for responses to the five questions listed above, this review process and report are not intended to alter the rates or to include any Commission recommendations.[4]
1.3 Process
Below is a summary of the process the Commission undertook to gather information for this report. A detailed description of the process is included in Appendix C.
1. Following a consultation process with the Utilities and the public, the Commission set out the method and process (attached as Appendix D to this report) by which the Utilities would prepare reports to the Commission on the Minister’s five questions, including a number of definitions to specific terms.
2. In an effort to reach all impacted parties, the Commission provided extensive opportunities for public comment, expanding on the usual comprehensive notification and public comment periods.
3. The Utilities filed their reports on the Minister’s five questions with the Commission.
4. Public and stakeholder comments were sought on the Utilities’ reports.
5. The Commission drafted this report.
The Commission adopted an approach whereby interested individuals and organizations could register as stakeholders (Stakeholders). Ten parties registered as Stakeholders, of whom the following five made comments on the Utilities’ submissions:
• British Columbia Old Age Pensioners’ Organization et al. (BCOAPO);
• B.C. Sustainable Energy Association and Sierra Club of British Columbia (BCSEA);
• Mr. N. Marty (Marty);
• Regional District of Mount Waddington (RDMW); and
• Ms. J. DeCock (DeCock).
In this process the Commission provided opportunities for public comment that were much more extensive than our usual public comment periods. Public notice was provided in major as well as community newspapers across the province and was sent directly to regional districts and municipalities. Two separate public comment periods were held, each of which was open for approximately 6 weeks. The public comment processes resulted in 669 letters of comment being submitted to the Commission. A list of the publications, regional districts and municipalities to which public notice was sent or published appears in Appendix F of this report.
1.4 Document structure
The Commission provides its response to each of the Minister’s five questions in the following five sections (2.0 through 6.0). Each section begins with the Commission’s response, followed by a summary of the information provided by BC Hydro and FortisBC (together, the Utilities) and Stakeholders that the Commission concluded was relevant to that question.
The extensive comments received from the
public have been summarized, and this information is included in Appendix A.
Further background information is provided in additional appendices.
2.0 Question 1 – Do the residential inclining block rates cause a cross-subsidy between customers with and without access to natural gas service?
The RIB rates do not cause a cross-subsidy, as that term is used and understood by energy regulators, between customers with and without access to natural gas.
In responding to the Minister’s question of whether the RIB rate causes a cross-subsidy between customers with and without access to natural gas, the Commission interpreted this question as requiring an examination of “cross-subsidy” within the context of public utility regulation in BC. More specifically, the Commission does not consider that a comparison of revenues only, without taking into account the utility costs to serve that customer, can indicate whether one customer group is subsidizing another customer group. Hence, the Commission adopted a revenue-to-cost comparison (i.e. as opposed to a revenue comparison only) interpretation of the term “subsidy” in this report.
Revenue-to-cost (R/C) ratios are industry-standard measures that are used extensively in rate design. They attempt to measure the degree to which customer revenues cover the costs of delivering service, and are typically used to ensure that cross-subsidization between rate classes is minimized. The Commission acknowledges that judgement is involved in assigning costs to customers, and asked the Utilities to use the same methodology in this exercise as they have used in previous regulatory proceedings. The Commission also acknowledges that there is no clear dividing line as to when a difference in revenues and costs within a customer class is large enough to be considered a subsidy, and has reflected this in its Report.
Although it may appear that any R/C ratio other than unity indicates cross-subsidization, it is important to recognize that the ratio is an imperfect measure, and therefore some degree of variance around unity falls short of being determinative that there is indeed a cross-subsidy. In particular, R/C ratios are sensitive to the methods chosen to estimate and allocate costs. Factors such as the degree of detail to which costs are broken down and whether historic or future costs are used will significantly vary the results of the R/C analysis. For this reason, it is common to look at R/C ratios on both historic and future cost bases when considering cross-subsidization, though neither on its own can be considered definitive.
R/C ratios can also be used to evaluate whether intra-class cross-subsidization occurs. In this context, it is important to keep in mind that residential electricity rates in BC are set on a “postage stamp” basis, whereby all customers in the BC Hydro territory pay the same amount regardless of their location, as do FortisBC customers (though BC Hydro and FortisBC customers have different rates). It is understood that costs to serve specific residential customers vary depending on many factors, including but not limited to location within the province, population density, and housing type. Hence, postage stamp rates inherently accept a degree of cross-subsidization between different residential customers.
When setting utility rates, the Commission is governed by sections 59–60 of the Utilities Commission Act (UCA), which state that rates must not be “unjust, unreasonable, unduly discriminatory or unduly preferential.” The Commission uses R/C ratios as one indicator of whether discrimination exists, and the degree to which such discrimination might be considered undue.
The Commission has looked to previous Commission decisions for guidance on the correlation between R/C ratio and cross-subsidization. In the Commission’s 2014 decision on BC Hydro’s rate schedule (RS) 3808, the Commission observed that a +/- 10 percent range was considered an acceptable degree of cross-subsidization between different rate classes.[5] Commenting on intra-class subsidization ranges, in the same BC Hydro RS 3808 Decision, the Commission observed “that acceptable R/C ratios for existing customers within a particular customer class can be greater than the +/- 10 percent range which has at times been considered acceptable for the total customer class.”[6]
In another proceeding involving intra-class subsidy issues, the Commission considered whether the Big White area was sufficiently different from other areas in FortisBC’s service territory to warrant special and unique rate treatment. In that proceeding, the costing data showed that if all of the project costs (construction of a new 138 kV line and substation and network upgrades) were assigned to the Big White area, the R/C ratio would be approximately 84 percent after load growth has occurred, compared to 100.6 percent for customers in the remaining service area. Costing data also showed that the R/C ratios for other regions included in the residential customer class varied, with Christina Lake at 82.1 percent and Kaslo at 128.1 percent. In that decision, the Commission considered that the results for Big White fell within the range of R/C ratios of the other communities in the FortisBC area, and did not establish the Big White area as a separate region for rate setting purposes.[7]
The Commission finds that the RS 3808 and Big White decisions are both relevant to the analysis of intra-class subsidization. It is within this context that the Commission considered whether the analysis presented by the Utilities shows evidence that the RIB rates cause a cross-subsidy between customers with and without access to natural gas.
The Commission asked BC Hydro and FortisBC to compare average residential rates for each customer segment to (i) historic (embedded) and (ii) future (incremental) costs for the utility to produce and deliver electricity to those segments. Summary results of this analysis are shown in the table below:
Table 1: Comparison of revenues to costs for customers with/without access to natural gas
|
Customers with no access to natural gas |
Customers with access to natural gas |
Difference (percentage points) |
BC Hydro[8] |
|
|
|
• Revenues as a percentage of historic costs (R/C Ratio) |
94.9% |
90.2% |
4.7 |
• Revenues as a percentage of future costs (R/C Ratio) |
89.0% |
86.0% |
3.0 |
FortisBC[9] |
|
|
|
• Revenues as a percentage of historic costs (R/C Ratio) |
108.5% |
94.0% |
14.5 |
• Revenues as a percentage of future costs (R/C Ratio) |
114.5%[10] |
111.8%[11] |
2.7 |
BC Hydro’s analysis produces R/C ratios (calculated on both a historic and future cost basis) that show a difference of no more than 4.7 percent between customers with and without access to natural gas. Considering past Commission decisions on cross-subsidization, the Commission does not find that the ratios reported by BC Hydro indicate existence of cross-subsidy between BC Hydro customers that can be attributed to whether or not they have access to natural gas.
FortisBC’s analysis for R/C ratios calculated on a future cost basis produces results that are similar to those for BC Hydro customers. Examining this ratio on its own, the Commission does not find it to be evidence of a cross-subsidy.
However, the R/C ratio for FortisBC calculated on a historic cost basis is 14.5 percentage points greater for customers without access to natural gas than for customers with access to natural gas. Although this ratio is greater than the 10 percent range cited in the RS 3808 decision for inter-class ranges, it does fall within the ranges the Commission has accepted for intra-class subsidies (per the RS 3808 decision and the Big White decision). Thus, the Commission finds this difference to be within the range of reasonableness for other FortisBC regions, and does not consider the difference to be unjust, unreasonable, unduly discriminatory or unduly preferential in the meaning of section 59 of the UCA.
Furthermore, the Commission has also looked into the issue as to why there was a significant difference in the FortisBC R/C ratios calculated using historic costs, but not for BC Hydro. The Commission is aware of the following differences in Commission-approved cost allocation approaches that could be contributing factors:
• FortisBC uses a minimum system approach to classify distribution costs as related to either peak demand or the number of customers. This approach reflects FortisBC’s philosophy that the system is in place in part because there are customers to serve throughout its service territory, and that a minimally-sized distribution system is needed to serve these customers even if they only use 1 kWh of energy per year. The Commission considers that this approach may result in more costs being allocated to small-use FortisBC customers (and hence fewer costs to high-use customers) than the approach used by BC Hydro (where distribution costs are primarily allocated based on demand).
• FortisBC allocates demand-related costs based on the sum of the two highest summer and two highest winter peaks, which reflects FortisBC’s philosophy that, while the summer peak is not at the same level as the winter peak, it is growing faster than the winter peak and will increasingly have a larger impact on the system. The Commission considers that this approach, while approved as fair, may allocate more costs to customers with summer consumption (and hence less costs to winter consumption) than the approach used by BC Hydro (which uses 4 winter peaks).[12]
The Commission considers that these two factors have the potential to reduce the cost factor in the R/C ratio for FortisBC customers with no access to gas (which have higher use), thus increasing the R/C ratio itself. Conversely, these factors may be increasing the cost factor in the R/C ratio for those customers with access to gas (who have lower use), and thereby reducing the R/C ratio. The Commission considers that the ability to decrease the 14.5 percentage point difference in FortisBC’s R/C ratio based on historic costs by changing cost allocation assumptions, without any change to the RIB rate design, illustrates the caution that should be placed when interpreting BC Hydro and FortisBC’s R/C ratio based on historic costs.
Taking all the above factors into consideration, the Commission does not find that the RIB rates cause a cross-subsidy between customers with and without access to natural gas for either of the Utilities.
The Commission also notes that it is important to consider the reasons for differences in R/C ratios before determining whether or not a subsidy exists. In Prince George Gas Co. v Inland Natural Gas Co.[13] (Prince George decision), a decision of the BC Court of Appeal cited by BC Hydro in its 2015 Rate Design Application, the court observed that payments from one group of consumers that reduce the rates of other consumers do not constitute a subsidy, as long as the reduction in rates is an “incidental result flowing from a proper rate based upon the cost of service.” Such a reduction in rates would, however, be considered a subsidy if its “specific purpose” is to benefit other consumers without regard to the cost of providing service. [14] In other words, differences in R/C ratios do not inherently determine the existence of a subsidy, only the possibility of one.
The RIB rates are conservation rates; that is, their purpose is to conserve energy or promote energy efficiency by providing a higher incentive, in the form of a higher rate for electricity purchased in the second tier, for higher-use customers to reduce consumption. Since it is not the purpose of the RIB rates to benefit any customers at the expense of other customers, this supports the Commission’s view based on the R/C ratios that there is no undue discrimination in the RIB rate.
Summary of comments of the parties
BC Hydro submits that this difference in R/C ratios is not substantive, and therefore there is no cross-subsidy between these two customer segments.[15] BCSEA and BCOAPO consider BC Hydro’s conclusion to be reasonable.[16]
FortisBC submits that postage stamp rates will result in some cross-subsidies within the customer class, but that this does not mean that separate rate classes should be pursued. FortisBC further submits that the difference in revenues as a percentage of costs is just outside the last accepted range of reasonableness, and does not consider that there is enough evidence to conclude that there is a cross-subsidy between these two customer segments. [17]
BCSEA considers FortisBC’s conclusion to be reasonable, and agrees with FortisBC that even if the evidence did show a cross-subsidy this does not mean that separate rate classes or subdivisions within a particular rate should be pursued.[18]
BCSEA states they are concerned that there is a disconnect between the Utilities’ responses to the Minister’s Question 1 and the concerns expressed by the RIB critics:
Question 1 asks whether the RIB rates cause “cross-subsidy” between customers with and without access to natural gas. Quite reasonably and properly, the Commission interpreted this question as requiring an examination of “cross-subsidy” as the term is used within the world of public utility regulation in B.C. The Commission required the utilities to use fully allocated cost of service (FACOS) and long run margin cost (LRMC) analyses to address whether the RIB rates cause cross-subsidization. The utilities did carry out these analyses, and their responses to Question 1 are discussed below. However, in BCSEA-SCBC’s view, the utilities’ analysis and results regarding “cross-subsidization” do not respond directly to the concerns and opinions of the RIB critics filed in this proceeding.
It appears to BCSEA-SCBC that the concerns expressed by most of the Without Access to Natural Gas critics of the RIB rates are not primarily that RIB rates cause an intra-class “cross-subsidy” in a regulatory sense. Most don’t use the term “cross-subsidy” and those who do refer it don’t use it in the sense of FACOS and/or LRMC analysis.
Rather, the concern evident in the letters of comment is that RIB rates cause customers without access to natural gas to have to pay ‘too much’ for electricity. ‘Too much’ in this context is not a rigorously defined concept, nor is it used in the same way by all the commentators. For some, ‘too much’ means more than they can afford. For others, ‘too much’ means paying more for electricity than they would if they did have access to natural gas. For others, ‘too much’ means paying more for electricity than is paid by customers With Gas Access. None of these concerns is directly addressed by Question 1 and the utilities’ responses to Question 1.
…
In BCSEA-SCBC’s view, the questions that arise out of the letters of comment are essentially:
• Do the RIB rates cause Without Gas Access customers and Low-Income customers to pay too much for electricity?
• What would be the consequences of moving to a flat rate for both Without Gas Access customers and With Gas Access customers, and Low-Income customers and Non-Low Income customers?
Although these questions were not explicitly stated by the Minister, BCSEA-SCBC respectfully submit that the Commission should ensure that these questions are addressed clearly and effectively in the Commission’s report to the Minister.[19]
BCSEA further states:
Most of the criticisms of the RIB rates in the letters of comment are based on the assumption that Without Gas Access customers would have lower electricity bills under a flat rate design than under the existing RIB rates. This assumption is quite incorrect. In fact, most Without Gas customers would likely pay more for electricity with a flat rate than with their current RIB rate. … If the Without Gas Access critics of the RIB rate succeeded in having the RIB rate replaced with a flat rate then most of the low-income electricity customers in the Without Gas Access areas (and in all other areas) would be worse off financially. The purpose of RIB rates is to incent conservation and efficiency and they achieve that objective.”[20]
The Commission agrees with BCSEA that the purpose of RIB rates is to incent conservation and efficiency, and that the vast majority of low-income customers are better off financially under the RIB rate than a flat rate. However, there are some high-use/low-income customers who are negatively affected, and it is mitigating the negative impacts for these high-use/low-income customers that is an area of focus in this report.
The Commission also notes that electricity rates would have increased for high-use residential customers, even in the absence of the RIB rates. For example, when the BC Hydro RIB rate was introduced in October 2008, the flat energy charge for exempt residential customers at that date was 6.55¢/kWh, which has since increased to 9.93¢/kWh (2016). FortisBC’s flat rate energy charge was 7.08¢/kWh in 2008 (and 10.22¢/kWh when their RIB rate came into effect in 2013), and has since increased to 11.43¢/kWh in 2016. As a result, only a portion of the bill increase experienced by high-use customers since 2008 would be attributable to the change in rate design. In addition, for low-income/low-use customers primarily consuming at RIB Step 1 levels, the Commission notes that moving back to a flat rate would increase energy rates by 20 percent for BC Hydro customers and 16 percent for FortisBC customers, which could also result in affordability concerns.[21]
BCOAPO notes that there is no obvious explanation for the difference in the R/C ratios between BC Hydro and FortisBC, and considers that additional analysis would be required before any firm conclusion can be drawn. However, they conclude that the Commission should respond to the Minister’s question in a qualified affirmative. BCOAPO submits that the Commission should also note the existence of inherent cross subsidies in any customer classification when customers are grouped together and that eliminating the RIB rate would have a significant adverse impact on the vast majority of low-income customers.[22]
The Commission agrees with BCOAPO that there are inherent differences in R/C ratios in any customer classification when customers are grouped together. For example, postage stamp rates generally provide an advantage to rural communities, and so customers in regions without access to natural gas may already benefit from a postage stamp cross-subsidy inherent in their rates.
RDMW, Marty and DeCock do not concur with BC Hydro’s conclusion that there is no cross-subsidy, and submit that BC Hydro arrived at this conclusion despite results showing the contrary.[23] RDMW assumed that the flat rate would be 5 percent higher than the Step 1 rate, and used consumption data for Port McNeill to estimate that RDMW residents in total would be paying $1 million more under the RIB rate than under the flat rates. RDMW concludes that the rates are structured to redistribute the extra-funds from high-volume users to low-volume users, and that this is a subsidy from customers without access to natural gas to those with access.[24] However, the Commission considers this analysis by itself is not evidence of a subsidy as it does not take into account the different costs to serve these customer segments, significantly understates the cost of electricity under a flat rate (which in 2016 was 20 percent higher than the Step 1 rate), and does not consider whether the magnitude of any difference found is within the range of reasonableness. In addition, the Commission disagrees that the purpose of the RIB rate is to redistribute funds between high-volume users and low-volume users, while acknowledging that this may be an unavoidable, incidental result in some instances.
For his part, Marty submits that assessing the existence of a cross-subsidy between customers by comparing those “with access” and those “without access” to natural gas greatly underestimates the situation as some in the “without access” benefit from the RIB rate (as they use wood or heating oil) and while some in the “with access” are paying significantly higher rates due to the RIB rate (as they use electricity for heating).[25]
DeCock raised concerns that the Utilities used annual consumption data to analyse rates that are affected by seasonal variation.[26] However, the Commission notes that the Utilities used actual revenues and load shape information to allocate costs between customer classes (FortisBC specifically refers to the use of hourly customer data in their report) which would have reflected seasonal variation.[27]
Public comments
The Commission received a number of
comments from the public suggesting alternative implementations of the RIB
rates, such as different rates for areas without access to natural gas (see
Appendix A, sections 1.2 and 1.6). While the subjects of revenue neutrality and
alternative rate structures are specifically out of scope for this review, the
Commission notes in the earlier part of this section that it does not find that
the RIB rate causes a subsidy between customers in areas with and without
access to natural gas, and hence there is no compelling reason to consider
restructuring the RIB rate on that basis.
3.0 Question 2 – What evidence is available about high bill impacts on low income customers?
The Commission presents here evidence gathered from the Utilities regarding high bill impacts on low-income customers. Specifically, the Utilities were asked to provide an analysis of low-income customers experiencing bill increases of over 10 percent as a result of the RIB electricity rates.
Bill impacts of the RIB rates in general
Before providing the evidence specific to low-income customers, the Commission examined the bill impacts of the RIB rate compared to a flat rate for any customer regardless of their income. We believe that these results provide context to the discussion that follows.
We have used tariff data for the FortisBC RIB rate structure for the purposes of illustration (BC Hydro’s rate structure is similar but not identical). FortisBC also has a flat rate restricted to customers enrolled in the RCR control group. The FortisBC 2016 tariff is:
Table 2: FortisBC 2016 RIB rate and residential flat rate
FortisBC RIB rate |
FortisBC Flat rate |
Tier-1 rate: 9.845 ₵/kWh Tier-2 rate: 15.198 ₵/kWh Tier-1 cut-off: 1,600 kWh per billing period RIB rate basic charge: $31.23[28] |
Equivalent flat rate: 11.433 ₵/kWh Flat rate basic charge: $36.39 |
The Commission notes that, since customers’ bills fluctuate between billing periods and are often higher in the winter, it is not possible to translate directly from annual consumption to billing-period consumption. However, to illustrate the impact of RIB rates on individual customer bills, the Commission has provided the following calculation of bill amounts using several sample levels of use in a two-month billing period:
Table 3: FortisBC 2016 residential bill comparison (RIB vs. flat rate)
|
Billing-period consumption (kWh) |
||||
1,000 |
1,600 |
2,500 |
5,000 |
10,000 |
|
Consumption compared to average of 1,917 kWh[29] |
0.5x |
0.8x |
1.3x |
2.6x |
5x |
Customer bill |
|
|
|
|
|
• RIB rate |
$129.68 |
$188.75 |
$325.53 |
$705.48 |
$1,465.38 |
• Flat rate |
$150.72 |
$219.32 |
$322.22 |
$608.04 |
$1,179.69 |
• Bill impact[30] |
-$21.04 |
-$30.57 |
$3.32 |
$97.44 |
$285.69 |
• Percentage impact |
-14% |
-14% |
1% |
16% |
24% |
As indicated by the table, there is a consumption break-even point, above which a consumer’s bill will be higher under the RIB rate than under the flat rate. For FortisBC customers, this break-even point is around 2,500 kWh per billing period (per the table above), for BC Hydro it is approximately 2,300 kWh per billing period.[31] Conversely, for customers consuming less than the break-even point, their bills are lower under the RIB rate than under the flat rate. So, while FortisBC RIB rate customers pay more for each kWh consumed above the 1,600 kWh threshold than they would under a flat rate, their total RIB rate bill only exceeds what the bill would have been under the flat rate once their usage exceeds around 2,500 kWh per period.
The Commission notes that high use will cause high electricity bills for flat rate customers as well as for RIB rate customers. From the table above, a high-use customer consuming 10,000 kWh, 5 times the average use, would pay $1,465, but under the flat rate bill would still be $1,180.
It is also important to note that some RIB rate customers will have months of higher consumption (for instance during the winter) under which they pay more than the flat rate, but also months in which they pay less than the flat rate. Hence, the analysis by both Utilities considered annual bill totals when looking at the impact of the RIB rates.
Low-income bill impact – BC Hydro
BC Hydro states that only a minority of its low-income customers have experienced high bill impacts under the RIB rate compared to a flat rate. Specifically, BC Hydro estimates that 1 percent of low-income customers experienced high (i.e. great than 10 percent variance) bill impacts moving from flat to RIB rates, whereas 88 percent of low-income customers are better off under the RIB rate.[32] Conversely, if BC Hydro returned from the RIB rate to a flat rate, 72 percent of low-income customers would see an increase of over 10 percent.[33]
BC Hydro also provided an analysis of the impacts of the RIB rate on low-income customers, breaking the low-income customer segment into separate categories for single-family dwellings, apartments, use of electricity for heat and use of other energy sources for heat. The data show that high unfavourable bill impacts (greater than 10 percent) due to the RIB rate are experienced by 4 percent of low-income customers in single-family dwellings, 1 percent of low-income customers using electric heat, and 2 percent of low-income customers using non-electric heat. No low-income customers living in apartments experience high bill impacts.
Table 4: BC Hydro Customer Segment Bill Impacts – Moving from Flat to RIB Rate in F2015
Customer Segments |
% better off |
% worse off |
% worse off & bill increase more than 10% |
All low-income |
88 |
1 |
|
Low-income & single family dwelling |
74 |
17 |
4 |
Low-income & apartment |
99 |
1 |
0 |
Low-income & electric heating |
87 |
1 |
|
Low-income & non-electric heating |
88 |
8 |
2 |
(Source: BC Hydro RIB Report, p. 23)
Low-income bill impact – FortisBC
FortisBC did not use the Statistics Canada Low-Income Cut Off level for its analysis, but provided alternative data based on self-reported income levels of respondents to its 2012 Residential End Use Study (REUS) that suggest that, for customers earning less than $30,000 per year, 9.7 percent[34] had bills impacted by more than 10 percent under the RIB rate, whereas 65.2 percent[35] had lower bills.

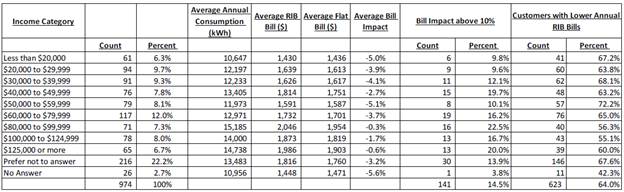

Table 5: FortisBC Customer Segment Bill Impacts – Moving from Flat to RIB Rate in 2015
(Source: FortisBC RIB Report, p. 10)
Summary of comments of the parties
BCSEA notes that changing from a flat rate design to a RIB rate lowers bills for lower-consuming customers, and increases them for high-consuming customers, and vice versa. BCSEA concludes that since low-income customers predominantly consume less electricity, RIB rates reduce the bills for the majority of low-income customers. BCSEA supports the Utilities’ findings, and comments that reverting to a flat rate would exacerbate affordability problems for most low-income customers.[36]
BCOAPO concurs, but emphasizes that, while the RIB rate has benefited the majority of low-income customers, BC Hydro’s data show that there is a small segment of low-income customers (1 percent) that will see bill impacts as a result of the RIB rate of greater than 10 percent, and bill impacts could be as high as 17 percent.[37]
Marty states that it is the use of electricity for heating and hot water that predominantly determines high electricity use, and that low-income customers without access to gas are more likely to have high electricity bills than low-income customers with access. The Commission finds nothing to dispute in this regard.
However, Marty further submits: “The RIB, by targeting electric heat customers, imposed the highest rate increases on those low-income customers struggling the hardest to pay their energy bills. … The beneficial financial impact on a low-income, high electricity user of returning to a flat rate would be far greater than the corresponding negative impact on a low-income, low electricity user.”[38] Marty contrasts two hypothetical customers to make his point.[39] As the Commission has already noted in its response to question 1, the purpose of the RIB rate is to conserve energy or promote energy efficiency, its purpose is not to target electric heat customers. The Commission also disagrees with the general characterization that Marty places on the impacts of the RIB rate, noting that the majority of low-income customers benefit from the RIB rate compared to the flat rate. The Commission also placed more weight to the Utilities’ bill analysis than that provided by Marty as the Utility analysis is based on actual customer profiles.

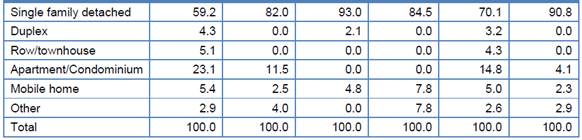

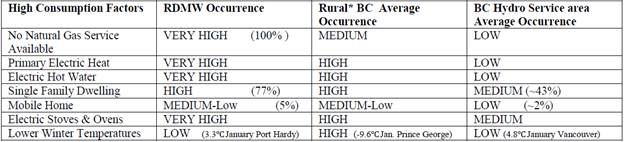

RDMW highlights the different distribution of low-income customers across dwelling type in rural areas versus province-wide, which RDMW submits are heavily influenced by the Metro Vancouver region, and notes that BC Hydro does not take this into account in its report. RDMW submits that, in its region, single-family dwellings make up 77 percent of the housing stock, versus 34 percent in Metro Vancouver. RDMW estimates that, assuming the flat rate is 5 percent higher than the Step 1 RIB rate, as many as 91 percent of low-income households in its region may be worse off with the RIB rate than with the flat rate and that the actual impact will depend on housing type.[40]
The Commission accepts that the mix of housing stock in the RDMW may differ from that in other areas of the province, and that the effects of the RIB rate on the RDMW low-income population would therefore be different to the Utilities’ overall customer base. However, the Commission notes that the RDMW’s argument rests largely on the assumption that the distribution between single family and apartments is the same for low-income residents as is the case for all residents in the area. No data has been provided to support this assertion. In addition, the Commission notes that the 2016 BC Hydro flat rate for exempt residential customers (9.93₵/kWh) is 20 percent higher than the Step 1 RIB rate (8.29₵/kWh), and not 5 percent higher as estimated by RDMW.
DeCock submits that, while the majority of low-income customers benefit from the RIB rate, this does not support penalising a minority of other customers who are totally dependent on electrical energy, particularly for heating. DeCock highlights the following letters of comment as examples of negatively affected customers that are low-income, seniors or who invested in electric heating prior to the RIB rate:
• E-534 lives in northern BC and said that BC Hydro had encouraged them to use electric heat with low rates for this that have now been rescinded.
• E-528 also was encouraged by BC Hydro rates and went exclusively electric with a design that cannot be retrofitted to central-air gas heat and he is a senior with a disabled wife and has found the high cost difficult.

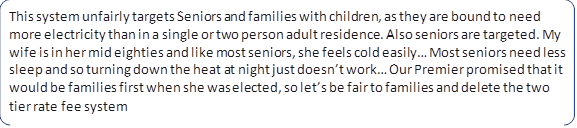

• E-530 is also a senior who says the rate unfairly targets seniors and families and says the Premier said it would be families first when elected.
• E-527 is a low-income customer who is a renter and so has no control over upgrades.[41]
The Commission agrees that, while the majority of low-income customers are better off under the RIB rate, there are some high use low-income customers who are negatively affected.
Public comments
Many public comments were received documenting bill increases since the RIB rates were introduced (Appendix A, section 1.1). The Commission understands that energy costs are a significant portion of some families’ budgets, and that affordability is a concern to them. However, the Commission has already noted that all residential electricity prices have risen since the RIB rates were introduced, both RIB rates and flat rates, and that the vast majority of low-income customers are better off under the RIB rate. The question of affordability is a serious one, but is not primarily caused by the RIB rate itself. The scope of this report specifically excludes looking at alternative rate structures, although the responses to questions 4 and 5 regarding DSM may go some way to suggesting ways to alleviate affordability issues.
In addition, comments were received from
members of the public for whom the impact of high electricity bills is to cause
them to switch to alternative fuels (Appendix A, section 1.3). Customers report
switching to natural gas and wood as alternative fuels, and some note their
disappointment in switching to more greenhouse-gas intensive fuels than
electricity. The scope of this review specifically excludes consideration of
the effect of RIB rates on greenhouse gas emissions. In addition, the
Commission notes that where all-electric customers have access to natural gas,
they may not have the ability or financial means to switch to natural gas
because of conversion costs.
4.0 Question 3 – What evidence is available about factors that lead to high-energy use and, therefore, bill impacts for customers without access to natural gas, including low income customers?
High-use customers of electricity are most likely living in larger, single-family homes, and use electricity for space heating and hot water. There is some correlation between low-income and lower electricity use, but there are low-income customers in all use categories, including the highest.
BC Hydro results
BC Hydro’s analysis defines “high energy use” customers as those using at or more than 20,000 kWh per year, twice the average consumption in the BC Hydro service territory, and “not-high energy use” customers as using less than 20,000 kWh per year.[42]
BC Hydro found that high energy use customers, regardless of income or access to natural gas, exhibit a higher proportion of factors that contribute to higher energy use relative to not-high energy use customers, making them more likely to have consumption in Step 2 of the RIB rate and hence higher energy bills. Examples of such contributing factors are:
• Living in a single, detached house;
• Use of electricity for heating and hot water;
• Ownership of appliances such as dishwashers, air conditioners and multiple refrigerators; and
• Customers who are less likely to exhibit energy conservation-related behaviour.[43]
BC Hydro provides data showing that customers living in single, detached homes are more likely to be high energy use customers than customers living in other dwelling types. This applies regardless of income level and/or access to natural gas.[44]

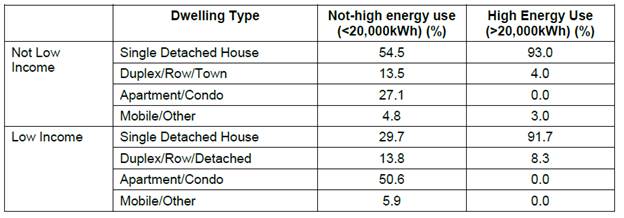

Table 6: BC Hydro High and Not-high energy users by Dwelling Type and Income Level
(Source: BC Hydro RIB Report, p. 32)

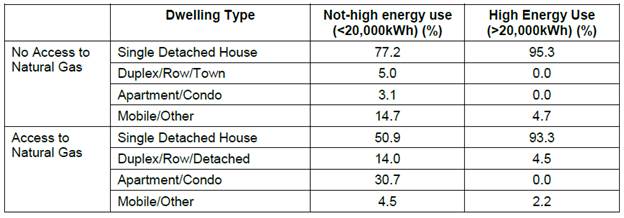

Table 7: BC Hydro High and Not-high energy users by Dwelling Type and Access to Natural Gas
(Source: BC Hydro RIB Report, p. 32)
BC Hydro further notes that 98 percent of those using 30,000 kWh/year or more live in single family dwellings, compared to 67.8 percent and 88.6 percent for customers using 10,000 kWh/year and 20,000 kWh/year respectively.[45]
BC Hydro also observes that the age of homes does not appear to have a substantive effect on energy consumption, but that high energy use customers have higher average floor area than not-high energy use customers (regardless of dwelling type).[46] BC Hydro provides the following data to support this conclusion:

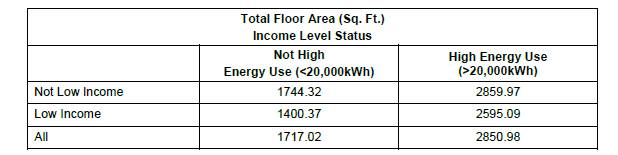

Table 8: Average Floor Area, High and Not-High Energy Users by Income Level

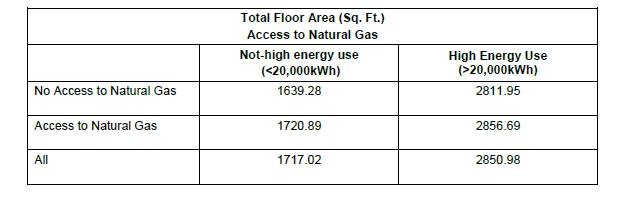

Table 9: Average Floor Area, High and Not-High Energy Users by Access to Natural Gas
BC Hydro also finds that, with respect to customer behaviour, the “high energy use” group tends to have a higher proportion of customers who are less likely to exhibit energy conservation related behaviour.[47]
Turning to the aspect of the question concerning customers without access to natural gas, BC Hydro notes that although 5 percent of the population has no access to natural gas, they make up 14 percent of BC Hydro’s high energy use customers.[48]
Considering customers without access to natural gas, BC Hydro high energy use customers have a larger share of all forms of electric heat, including baseboards, air-source heat pumps and forced-air electric furnaces, than not-high energy use customers. Such BC Hydro customers also have a larger share of electric hot water tanks compared to not-high energy use customers.[49]
BC Hydro presents an analysis of its customers considering income and consumption. The table below shows that, at the extremes, the very high income group ($120,000 or over) has a high proportion of higher consumption customers, while the very low-income group ($20,000 or less) has a high proportion of lower consumption customers. The Commission observes the apparent correlation between those in lower income categories and those who use less electricity, but also notes that there are consumers across all income categories who are in the highest use bands.

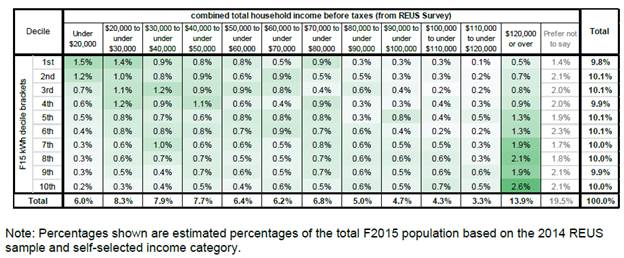

Table 10: BC Hydro Proportion of Population vs. Income vs. Consumption
(Source: BC Hydro RIB Report, p. 35)
FortisBC results
FortisBC defines high-use customers as those using 23,000 kWh per year or more (twice the average consumption), whereas not-high use customers are those consuming at or less than 11,500 kWh per year (the average consumption).[50]
FortisBC tested all differences in characteristics among sub-groups of customers assuming a confidence interval of 95 percent but cautions that the presence of a statistically significant difference does not necessarily mean a causal relationship exists between the characteristic and the differences in energy use between the groups.[51]
FortisBC found that the high-use customers have a higher proportion of characteristics that require more electricity use than not-high use. For instance, high-use dwellings are more likely to be:
• Larger single-family detached homes;
• Those that have more occupants and children;
• Using electricity as the primary fuel for heating and hot water;
• Using more electric appliances such as dishwashers, freezers and clothes dryers; and
• Those who have not reduced energy consumption as much as reasonably possible.[52]
Data from FortisBC show that high-use customers are more likely to be living in single-family detached dwellings than other forms of accommodation.[53]
Table 11: FortisBC Dwelling Type (% Incidence) – High-Use vs. Not-High-Use Households by Access to Natural Gas
(Source: FortisBC RIB Report, pp. 13, 14)
FortisBC also concludes that its high-use customers are more likely to have homes over 2,500 square feet.[54] FortisBC also provides the following table, showing the analysis of customers by dwelling size, electricity use, and whether or not they have access to natural gas.

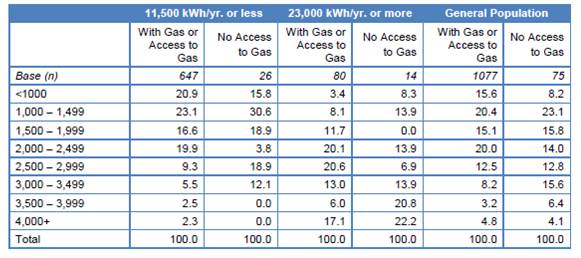

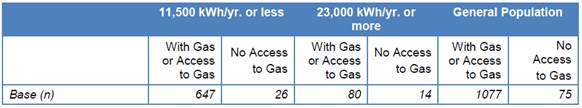

Table 12: Dwelling Size (ft2) – High-Use vs. Not High-Use Households by Access to Natural Gas
Turning to customers without access to natural gas, FortisBC found that within the sub-group of high users without access to natural gas, there is a larger share with electric heating (including baseboard and furnace) than the other comparison groups. High-use customers without access to natural gas also had a higher number of heating-degree days than other customers, signifying that they are likely located in areas with colder winters.[55]
FortisBC high-use customers without access to natural gas are more likely to use 60 gallon hot water tanks compared to the general population, whereas they are less likely to use small hot water tanks. FortisBC notes that hot water use is influenced by the number of occupants and the presence of children in homes, and that high-use homes without access to natural gas have a higher number of both compared to low-use customers.[56]
The Commission agrees that not all customers who have access to natural gas use it for space heating and hot water. We note that if those customers who use electricity for space and or hot water heating chose to convert to natural gas in an attempt to reduce their energy costs, they may be faced with significant conversion costs.
FortisBC did not provide data on low-income customers in response to this question. FortisBC concludes that differences in socio-economic characteristics between high-use and not-high use homes were “either statistically insignificant or unlikely to significantly contribute to significant differences in energy use between the two household groups.”[57]
Summary of comments of the parties
BCSEA supports Commission acceptance of BC Hydro’s and FortisBC’s response to Question 3 as consistent with the Commission’s requirements, while noting that BC Hydro’s category “Not High Energy Use” is not the same as FortisBC’s “Not-High Use” category. [58]
RDMW presents its own assessment of the factors leading to higher average residential electricity use by region:
Table 13: RDMW: Factors Leading to Higher Average Residential Electricity Usage, by Geography
(Source: RDMW November 18, 2016 submission, p. 2)
RDMW submits that, due to having few other viable options such as natural gas service, RDMW households have a much higher incidence of electricity used for heating, hot water heating and cooking than the BC Hydro average, which RDMW submits accounts for 66 percent of a household electricity use according to Figure 4 of BC Hydro’s RIB Report.[59] The Commission accepts the general nature of the RDMW findings, and finds it a useful illustration of the situation in some areas of the province. However, it considers the analysis from the Utilities provides more comprehensive data for analyzing the situation across the entire province.
DeCock points out a factor that also contributes to higher energy consumption and which has been left out of BC Hydro’s list: families that rent all-electric dwellings from landlords who have no reason to upgrade to reduce electricity consumption.[60] The Commission concurs, and notes that this is a limitation to the adoption of many of the existing DSM programs. The Commission further notes that there are some DSM programs that renters can participate in (such as behaviour and lighting programs) and that deeper DSM energy savings can be achieved by rental facilities owned by BC non-profit housing associations. However, the Commission considers that the Utilities could do more to address the landlord/tenant split incentive problem that occurs where the renter is responsible for the electricity bill but the landlord is responsible for energy efficiency investments.
Marty references data provided by the Office of Energy Efficiency for 2013, which Marty submits shows that space and water heating were “clearly the dominant factors determining a home's energy use, on a combined basis accounting for 77% of total residential energy use. … It follows that the dominant factor determining home electricity use is the fuel used for space and water heating. All things equal, the home that uses electricity for both space and water heating will, on average, consume four times the amount of electricity as a home that uses natural gas for both purposes.”[61]
The 77 percent figure quoted by Marty in the preceding paragraph applies to total energy consumption – including gas, wood, etc. – rather than electricity specifically. This figure differs from the Utilities’ data, since for all-electric dwellings, the use of electricity for space heating and hot water as a percentage of total electricity consumption is estimated by FortisBC to be 59 percent,[62] and by BC Hydro to be 61 percent.[63] The Commission is inclined to accept the Utilities’ figures for households in BC as more representative, but notes that this doesn’t change the overall conclusion, which is that use of electricity for space heating and hot water is the prime determinant of high electricity consumption.
Marty further observes that the overlap between customers without access to natural gas and those using electricity for heating and the overlap between customers with access and those using natural gas for heating, while considerable, are not identical:
Although many residents without access to natural gas use electricity for space and water heating, some use other fuels, particularly for space heating. Wood is the most economic of these alternative fuels and thus used to the greater extent. But heating oil and propane might also be used. As well, there are residents with “access” to natural gas, who use electricity for heating. Despite natural gas being the much cheaper fuel, homeowners with baseboard heating, who do not have basements or ductwork may be unable to convert their heating system to forced-air natural gas at a reasonable cost.[64]
These points were also raised by BCOAPO, and the Commission find that they are pertinent.[65]
Finally, BCOAPO points out that the Utilities do not appear to talk about the energy efficiency of the dwellings, which in BCOAPO’s view is another important factor to consider. BCOAPO further submits that, in recent years, building codes have imposed increasingly stringent requirements that have the effect of increasing the energy efficiency of the housing stock.[66] The Commission agrees that the increasing energy efficiency of dwellings is a consideration, and that the Utilities should consider the need for customers to upgrade existing buildings to the standard of new construction in the design of their DSM programs.
5.0 Question 4 – What is the potential for existing Demand Side Management programs to mitigate these impacts?
Demand-side management (DSM) programs offered by BC Hydro and FortisBC have the potential to mitigate bill impacts for high-use customers (including low-income, high-use customers) resulting from the RIB rate. However, there are barriers preventing some customers achieving these benefits, and the Utilities could do more to increase participation in their DSM programs.
Both BC Hydro and FortisBC offer residential DSM programs for existing homes (as at March 2017) which could mitigate the bill impact for high-use residential customers, including low-income customers. The table below tabulates the existing DSM programs offered by the Utilities:
Table 14: Residential DSM programs that could mitigate bill impacts for high use customers
Existing DSM programs |
Incentive provided[67] |
Estimated bill savings[68] |
BCH/FBC home renovation |
|
|
o Insulation |
Maximum of: $600 (attic), $1,200 (exterior wall), $1,000 (basement), $450 (other) |
BCH home renovation: $430/year 8.5 year payback based on average customer cost of $3,650 FBC home renovation: $290/year 6 year payback based on average customer cost of $1,706 Heat pump only: $627/year 8 year payback based on incremental customer cost of $5,000 (FBC estimate) FBC also offers a 10 year loan at 1.9% (up to $6,500) for air heat pumps |
o Heat pump – ductless air source |
$800 |
|
o Home evaluation |
$150 |
|
o Draft proofing |
Maximum of $500 |
|
o Bathroom fan |
$25/fan (maximum $50) |
|
o Three or more eligible upgrades |
Additional $750 |
|
Behavioural programs |
BCH and FBC offer programs to encourage customers to adopt more energy efficient behaviours. |
$60/year (BCH estimate) |
Appliances |
BCH: rebate program will return in May. FBC: $100 /appliance |
BCH: $50/year FBC: $56/year 4 year payback based on customer upgrade cost of $200 |
Lighting |
$2 - $10/bulb or pack of bulbs $5 - $20/fixture $3 – dimmer/timer |
BCH:$15/year FBC: $18/year 2 year payback based on customer purchase of 3-pack of LED bulbs at $30 |
Heat pump – water heater (FBC only) |
$1,000 |
FBC: $161/year |
Heat pump – central air source (FBC only) |
FBC - $1,200. |
FBC: $720/year 4 year payback based on customer incremental cost of $2,991. FBC also offers a 10 year loan at 1.9% (up to $6,500) for air heat pumps. |
Heat pump – service (FBC only) |
$50 |
|
The data in Table 14 show that BC Hydro residential customers participating in the behaviour, lighting and home renovation programs have the potential to generate bill savings of $505/year.[69] To achieve these savings, the customer would have to make an initial investment of $3,680, and hence the payback would be 7.3 years.[70] Similarly, FortisBC customers have the potential to generate bill savings of $368/year based on an initial investment of $1,726, representing a payback of 4.7 years.[71] Installing a ductless air source heat pump could provide additional savings of $627/year, from an incremental investment of $5,000, representing a payback of 8 years.[72]
In addition, BC Hydro and FortisBC offer DSM programs for qualified low-income customers, as shown in the table below:
Table 15: Low-income DSM programs that could mitigate bill impacts for high use customers
Existing DSM programs – low-income |
Incentive provided[73] |
Estimated bill savings[74] |
Energy savings kit |
Free ‘easy-to-install’ energy-saving products such as LED bulbs, high-efficiency showerheads, and weather stripping that customers can install themselves |
BCH: $125/year
FBC: $177/year
|
Home energy assessment and product installation (ECAP[75] basic) |
Free home energy assessment and the installation of energy-saving products |
|
Upgrades for non-profit housing providers and Aboriginal communities (ECAP advanced) |
Free installation of home insulation, fridge |
$683/year (FBC estimate) |
The data in Table 15 show that a low-income BC Hydro customer participating at no cost in the home energy assessment and product installation program should see bill savings of approximately $125/year, whereas a low-income FortisBC customer participating in the same program would save approximately $177/year. [76]
FortisBC notes that its high-use customers are “more likely to be…those who have not reduced energy consumption as much as reasonably possible”[77] and BC Hydro says “the high use group tends to have a higher proportion of customers who are less likely to exhibit energy conservation related behaviour.”[78] The Commission finds this supports the use of DSM programs to mitigate high electricity usage, and hence high bill impacts.
However, the Commission recognises that the estimated bill savings for non-low-income and low-income residential customers assumes the customer: (i) is aware of the existing utility DSM programs; (ii) can achieve energy savings by participating in these DSM programs; and (iii) has the financial means and incentive to do so (for example, does not face low-income/renter barrier to participation). Where these barriers exist, a customer’s ability to mitigate bill impacts through participation in existing DSM programs may be limited.
To the extent that these barriers exist, there are opportunities for the Utilities remove them. Awareness could be raised, possibly with efforts targeted to areas without access to natural gas and hard to reach customers such as renters and low-income residents. Also, innovative financing options could be considered to enable more low-income customers to participate in existing DSM programs.
In addition, the Commission considers that recent funding decreases of BC Hydro and FortisBC non-low-income residential DSM programs could also negatively affect participation levels. Appendix E contains an analysis of the Utilities’ most recent DSM expenditure forecasts. The Commission notes the following highlights:

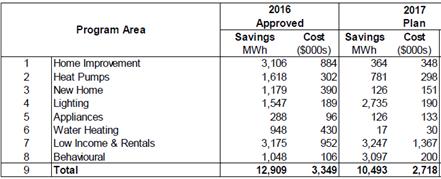

• BC Hydro recently proposed a 2 percent increase in DSM program funding for low-income residential DSM programs to $7.8 million, but a 39 percent decrease in non-low-income residential DSM programs to $30.1 million. This included a 35 percent decrease in the retail rebate program (to $8.1 million) and a 21 percent decrease in the behavioural program (to $11.1 million). In addition, BC Hydro proposed a 34 percent decrease in funding for public awareness and education/community engagement DSM programs to $20.9 million. [79]

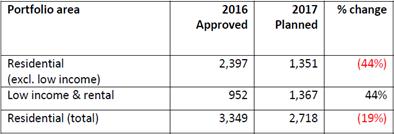

• FBC recently increased its funding for low-income and rental residential programs by 44 percent to $1.4 million, but decreased funding for its other residential DSM programs by 44 percent to $1.4 million. This included a 61 percent decrease in annual program funding for the home renovation program (to $0.3 million) and a 93 percent decrease in annual program funding for the heat pump water heating program (with a 2017 annual budget of now $30,000).[80]
Regarding the level of incentives provided in existing DSM programs, the Commission notes that the average cost to BC Hydro and FortisBC of each kWh of energy saved from residential DSM programs (including low-income programs) is 4.1 ¢/kWh and 3.2 ¢/kWh respectively.[81] The Commission considers that there could therefore be the potential to increase incentives provided under of existing DSM programs, in particular for high-use customers (including low-income customers) in regions without access to natural gas, while maintaining the cost-effectiveness of the program overall.
Summary of comments of the parties
BC Hydro states that within its current DSM Plan and expenditure level, it does not see any significant opportunity to improve the uptake of residential DSM programs by high electricity users, or any major barriers that its current programs do not already attempt to address. BC Hydro also states that the letters of comment received on this process showed that many customers are aware of their DSM opportunities and are taking significant steps to reduce consumption.[82] FortisBC did not comment on whether it could do more to increase uptake or overcome barriers to participation.
BCSEA and BCOAPO both disagree that BC Hydro can rely on the letters of comment in this process to support its view that there are no significant opportunities to improve the uptake of these DSM programs, and both express disappointment in FortisBC’s lack of comment on whether it could do more to increase uptake. BCOAPO submits that there is reasonable room for the expansion of BC Hydro and FortisBC’s low-income DSM programs, and that low-income awareness of existing DSM programs targeted at this customer class is quite limited. [83] BCOAPO also submits that BC Hydro’s Advanced ECAP serves very few customers – 50 low-income homes a year out of 84,777 low-income customers.[84]
BCSEA submits that ramping up incentives provided in existing DSM programs could increase the potential for DSM programs to mitigate rate impacts.[85] RDMW also argues for an increase in DSM incentives to assist customers mitigate high bills caused by the RIB rate structure, such as incentive levels set at more than 25 percent of the cost.[86]
BCOAPO submits that BC Hydro could be more pro-active in reaching low-income customers, for example by seeking out the types of community partnerships that are generally used to deliver low-income DSM, developing a better understanding of the target market, using billing and payment records to target eligible customers, increasing efforts to provide DSM to non-profit housing units, and extending low-income DSM to all areas within BC Hydro’s service territory.[87] BCOAPO also notes that some low-income customers do not experience many savings from the Energy Saving Kits they received from FortisBC as they do not know how to install the items, which end up “sitting on a shelf.”[88]
The Commission finds that the evidence of BCSEA and BCOAPO is more compelling than that of the Utilities in this instance. The letters of comment, which BC Hydro submits show that many customers are aware of their DSM opportunities and taking steps to reduce consumption are not a rigorous basis for concluding that there is not significant opportunity to improve the uptake of DSM programs. The Utilities’ own responses to question 3 state that high electricity use is correlated with customers who are less likely to exhibit energy conservation-related behaviour, or those who have not reduced energy consumption as much as reasonably possible. The Commission finds that there are opportunities to improve uptake of the existing DSM programs, and that efforts could be targeted to low-income customers and renters facing barriers to participation.
Marty submits that DSM programs cannot significantly mitigate the adverse bill impacts of the RIB rate because those impacts have “virtually nothing to do with a customer’s level of energy efficiency.”[89] The Commission does not agree, for the reasons noted above. However, the Commission acknowledges that DSM programs have limitations, and that they are unlikely to mitigate the entire effects of all residential electricity rate rises since the RIB rates were introduced.
Public comments
There was public input on a number of topics related to the subject of DSM (Appendix A, section 1.4).
Some customers have reported that their conservation efforts to date, while comprehensive, have not been sufficient to reduce their consumption such that every RIB rate bill falls below the tier 1 step. The Commission accepts this, but notes that the break-even point where the RIB rate bill is higher than the flat rate bill is considerably higher than the tier 1 step, and also that many customers achieve savings on their RIB rate bills in the summer months that offset higher bill amounts in the winter (public comments did not include references to annual bill amounts, only winter or bi-monthly bills).
Other members of the public comment that they have now exhausted their conservation efforts, and that the RIB rate is therefore no longer an incentive to conserve, as they can do no more. The Commission acknowledges that, while the purpose of the RIB rate is to incent conservation and efficiency and that it does benefit the majority of low-income customers, there will be some customers who are negatively affected by its design. The Commission suggests that the Utilities investigate new DSM programs targeted to assist these customers.
Comments were also received from people who
felt that they could not access DSM programs because of the investment
involved. The Commission notes that there are programs for low-income customers
listed in the table above, and that these could be better promoted by the
Utilities.
6.0 Question 5 – Within the current regulatory environment, what options are there for additional Demand Side Management programs, including low income programs?
There are some opportunities for additional DSM programs that would benefit all customers, including those on low incomes. While there are limits on BC Hydro’s DSM funding, there are opportunities for BC Hydro to reallocate DSM funding within its DSM budget.
Regarding which additional DSM programs could be offered, the Commission considers that, given the high level of analysis provided by the Utilities, it is difficult to determine where the Utilities’ DSM programs fall short compared to those offered in other jurisdictions. However, the Commission considers that the Provincial dual-fuel Conservation Potential Review could be a useful starting point in identifying new DSM opportunities for the Utilities to pursue.
At a minimum, evidence provided by the Utilities indicates that additional DSM programs could include a heat pump water heater program for BC Hydro and community programs (such as the ‘Energy Diet’ program previously offered by FortisBC) for both Utilities to raise awareness and participation in home energy retrofits and targeting specific end uses.
The Utilities could also look to develop DSM programs intended specifically to assist high-use households (including high-use/low-income households) located in areas without access to natural gas to reduce their electricity consumption.
For FortisBC, the current environment would support an expansion of DSM funding to accommodate new programs. For BC Hydro, the Commission considers that there could be opportunities to move funding from other DSM programs to support new programs within the existing regulatory framework, while still maintaining program cost effectiveness and a broad range of measures for all customer groups. The Commission notes that in the F2017–F2019 BC Hydro Revenue Requirements Application:
• BC Hydro plans to spend 1 percent of residential revenues on residential DSM programs, compared to 3 percent for light industrial/commercial and 5 percent for large industrial sectors respectively.[90]
• BC Hydro proposes to spend $37.9 million on residential DSM programs (including low-income programs) at an average cost to the utility of 4.1 ¢/kWh, compared to $38.6 million on information gathering for capacity-focused DSM plans with no assumed energy or capacity savings, $99.4 million on commercial customers with a similar cost of energy saved (4.0 ¢/kWh), and $138.7 million on industrial customers with a cost of energy saved of 2.7 ¢/kWh.[91]
The Commission also notes that, under section 44.2 of the Utilities Commission Act, it cannot direct utilities to file a DSM expenditure schedule, make additions to a DSM expenditure schedule or change the design of a particular DSM program. However, the Minister has in the past directed utilities to undertake specific DSM programs through the DSM Regulations.
Summary of comments of the parties
BC Hydro’s position is that additional DSM programs are not warranted at this time as: (i) increasing the overall level of DSM funding for additional programs would place upward pressure on rates over the 2013 10 Year Rates Plan as it would increase utility costs and reduces sales; and (ii) shifting program funding from other DSM programs to support the new programs could decrease program cost-effectiveness and put at risk BC Hydro’s objective to maintain a broad range of measures for all customer groups.[92]
The Commission agrees with BC Hydro that the 2013 10 Year Rates Plan limits the ability of BC Hydro to increase its overall level of DSM funding. However, the Commission disagrees that there are no opportunities to move funding from other DSM programs to support new programs.
FortisBC’s position is that the current regulatory environment is supportive of additional DSM programs, including low-income programs (as long as they are cost effective). FortisBC also notes that it has previously run a number of successful campaigns, including broad-based community Energy Diets to raise awareness and participation in home energy retrofits, and targeting specific end-uses such as laundry.[93] The Commission agrees with FortisBC, but also notes concern raised by the Commission in previous proceedings that FortisBC’s DSM proposals fall short of addressing the range of DSM possibilities that could be pursued. For example, although FortisBC proposed spending on low-income DSM programs increased by 44 percent for 2017 (from $0.95 million to $1.37 million), proposed spending on other residential DSM programs decreased by 44 percent (from $2.38 million to $1.35 million), with a 19 percent decrease in residential DSM funding overall.[94]
BCSEA disagrees with BC Hydro’s position that there are no significant opportunities to add to or modify the DSM plan to target the key drivers of high-energy use, in particular for low-income customers and those without access to natural gas. BCSEA also disagrees with BC Hydro’s position that such changes are not warranted at this time, and submits that these issues are to be determined in the BC Hydro F2017–F2019 Revenue Requirements Application proceeding. BCSEA agrees with FortisBC that the current regulatory environment is supportive of additional DSM programs, including low-income programs, as long as the measures are cost-effective on a total resource cost basis.[95]
For both utilities, BCOAPO states that given the high-level descriptions provided of the programs offered in other jurisdictions it is not immediately evident how the scope (e.g. measures included, planned installs per year, etc.) of the programs offered in other jurisdictions compare with the scope of BC Hydro and FortisBC’s programs, particularly for the low-income programs. As a result, BCOAPO submits that in such instances, it is not possible to judge whether BC Hydro or FortisBC’s programs compare favourably with those in other jurisdictions, particularly with respect to those programs targeted at the factors identified as leading to high electricity use. [96]
BCOAPO recommends that the Commission’s report to the Minister notes that while BC Hydro and FortisBC’s DSM programming addresses many of the characteristics of high-use customers and many of the same areas as those of other utilities, it is not evident that the scope of their programs are as comprehensive as those offered by others. BCOAPO recommends that the scope of FortisBC’s DSM programs be reviewed in FortisBC’s long-term electric resource plan, and that the Commission should consider whether there is a need for closer scrutiny of BC Hydro’s current proposed DSM plan in the F2017–F2019 Revenue Requirements Application proceeding.[97]
Marty submits that DSM programs cannot significantly mitigate the adverse bill impacts of the RIB rate as the bill impacts have virtually nothing to do with a customer’s level of energy efficiency.[98] Marty further submits that, if the current energy-using equipment in the house is relatively new (i.e. less than 15 years old), the DSM program would have to offer major financial subsidies to make its replacement an economic proposition.[99] RDMW submits that targeted DSM programs (regions with no access to natural gas and a higher incidence of single family housing) providing subsidies of more than 25 percent of the cost for heat pumps and on-demand and solar assisted hot water tanks could assist customers mitigate high bills caused by the RIB rate structure.[100]
Public comments
Several public comments were received with suggestions for programs that would further reduce electricity demand (Appendix A, section 1.5). These included financial incentives for customers to install their own clean energy generation capacity, and to promote and expand the use of net metering solutions. The Commission is supportive of the Utilities mitigating market barriers to small clean distributed generation.
Below is a themed summary of the public comments received through the two public comment phases held by the Commission regarding the impact of RIB rates and the public’s awareness of ways to mitigate the impacts.
669 letters of comment were received and entered into the record as part of this process, 16 of the letters were from regional districts, townships, and other groups. The Minister’s letter suggested the Commission seek comments from ratepayers in regions not served by natural gas regarding the impacts of conservation rates and awareness of ratepayer mitigation options. Most of the comments highlighted concerns on the RIB rate.
The following themes emerged from the comments:
1. Large electricity bill increases since the implementation of the RIB rate and its impacts;
2. The RIB rate lacks consideration for diversity of the residential customer class;
3. Pricing signal and impact on fuel switching to high-carbon sources;
4. Effectiveness of electricity efficiency upgrades and energy conservation behaviour to mitigate high electricity bills;
5. Demand-side measures and self-generation possibilities;
6. Proposed modification to the RIB rates; and
7. RIB rates promote conservation.
These themes are discussed further in the following subsections, and quotes from the letters are included to illustrate each theme.
1.1 Large electricity bill increases since the implementation of the RIB rate and its impacts

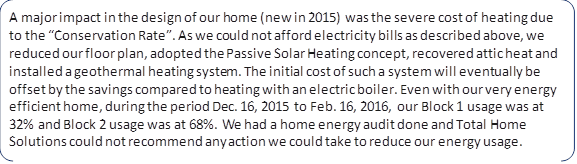

In the letters of comment received, customers express that they have experienced increases in their electricity bills since implementation of the RIB rates. Many customers present analysis of their bills pre- and post-RIB rate implementation and express frustration that despite decreasing electricity consumption, their electricity bills have increased. Eight-two of the letters of comment received were from customers who indicated they are on a fixed income and that electricity bill increases due to the RIB rates are especially difficult for them.
Illustrative quotes
Bill increase
Impact on affordability and comfort
Impact on customers with inability to use alternative fuel
Impact on customers with electrified and/or energy efficient homes
1.2 The RIB lacks consideration for diversity of the residential customer class

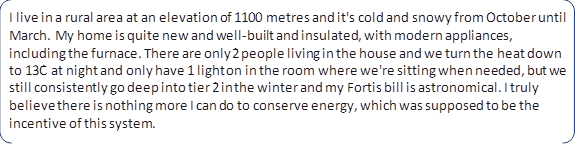

Customers raised a number of factors that contributes to the difference in electricity usage at each dwelling, including the fuel type used for heating, availability of alternative fuel options, feasibility of fuel switching, different energy needs in rural areas, size of homes, number of residents per premise, and climate differences due to varying geographical locations. Customers raised that having the same electricity usage threshold to be charged under tier 1 rates for all residential customers, without consideration of different circumstances, is not appropriate. For example, rural customers expressed that they must use more electricity than others for basic household functions such as water pumps, and customers with multiple residents in one dwelling expressed that they must use more electricity than others because the rate is applied per dwelling without taking into account the number of residents.
Illustrative quotes
General comments
Areas with vs. without fuel alternatives
Energy needs in rural areas
Dwelling size
Difference due to customer needs
Geographical differences
1.3 Pricing signal and impact on fuel switching to high-carbon sources
To save money on their electricity bill, customers report switching to natural gas, propane or wood to heat their homes but they express concern about these fuel sources’ carbon emissions and their effect on air quality. Customers also express concern about a perceived contradiction that the RIB rates are designed to achieve environmental benefits through electricity conservation but the rates result in behaviour with increased carbon emissions. Customers also express that the RIB rates are a disincentive to invest in electric vehicles.
Illustrative quotes
Pricing signal of the RIB rate
Customer fuel switching to higher carbon sources
Environmental impact from fuel switching
Customers expressed that for those who either have an existing energy efficient home, or have responded to the RIB rates with additional energy efficiency upgrades and conservation behavioural changes, demand-side management (DSM) has been ineffective in reducing energy consumption to within the tier 1 consumption threshold and reducing electricity bills. Customers with electrified homes and electricity efficiency upgrades installed prior to the RIB rate expressed frustration that, with the higher cost of electricity under the tier 2 rate, their financial investment to electrify turned out to be higher than what they budgeted for. Other customers expressed that there are no additional energy efficiency upgrades they can implement to further reduce electricity bills. Some low-income and rental customers also raised that they do not have access to DSM.
Illustrative quotes
DSM ineffective in reducing energy consumption to within the tier 1 threshold
DSM ineffective in reducing electricity bill
Cannot recover cost of energy efficiency improvement through energy savings under the RIB rate
Lack of opportunities to further reduce bill
Inability to access DSM to mitigate bill impacts (low-income/renters)
1.5 Demand-side measures and self-generation possibilities
Some customers raised further promoting demand-side measures as a way to reduce electricity consumption and lower electricity bills. Customers feel that additional energy conservation and retrofit incentive programs are needed, and DSM programs can be better promoted.
Customers also raised that distributed generation and net metering can reduce their electricity bill, and encourage the utilities and the government to better communicate and provide financial incentives for customers to pursue these options.
Illustrative quotes
Demand side measures
Distributed generation
1.6 Proposed modifications to the RIB rates
Customers provided a number of changes they would like to see to the existing RIB rates. For customers without access to natural gas, the suggested changes include providing a rate subsidy or rate rebate, increasing the tier 1 consumption threshold and vary the tier 1 consumption threshold by season.
Other suggested alternatives to the current RIB rates include time of use rates, seasonal rates, declining block rate, flat rate and interruptible rates for residential customers. Customers also raised that the RIB rate is not necessary for conservation.
Illustrative quotes
Recommended changes to the RIB for customers with no access alternative fuel
Other possible rate structures in place of the RIB
A few of the comments submitted expressed that the RIB rate fosters responsible use of energy and promotes energy conservation, and supports the two-tier rate structure.
Illustrative quotes
APPENDIX C – Detailed description of BCUC process to gather information for report
In August, 2015 the Commission established a process to gather information to address the Minister’s questions. All documents filed in the process are posted on the Commission’s website. The following four steps occurred in the process:
1. The Commission sought information and comments from Stakeholders[179] to determine the methodology by which BC Hydro and FortisBC would prepare reports to the Commission on the Minister’s five questions and definitions of specific terms in the Minister’s questions. A copy of the Commission letter establishing the methodology is attached as Appendix B to this report.
2. Public comments were sought on the impacts of the RIB rates and the public’s awareness of ways to mitigate the impacts. A full list of the newspapers, regional districts and municipalities to whom notice of the request for public comments was published or sent is included as Appendix F.
3. BC Hydro and FortisBC filed their reports on the Minister’s five questions with the Commission.
4. Public and Stakeholder comments were sought on the utility reports.
1.1 Determining the methodology for BC Hydro and FortisBC’s reports on the Minister’s five questions
As the first step in the process, the Commission invited comments on the methodologies BC Hydro and FortisBC should use to answer the Minister’s five questions. The purpose of this step was to align the methodologies used by the two utilities as much as possible so the information provided by each in its report to the Commission was as comparable as possible.
Comments were sought from BC Hydro, FortisBC and all registered interveners in two previous Commission proceedings which addressed the RIB rates: the BC Hydro 2013 Residential Inclining Block Rate Re-Pricing Proceeding and the FortisBC Inc. 2011 Residential Inclining Block Rate Proceeding. Comments were sought from the utilities and interveners in previous RIB proceedings because the nature of the information sought was best suited to parties that had knowledge of the RIB rates. These participants with knowledge of the RIB rate were designated as Stakeholders in this process. Stakeholders also provided comprehensive comments and analysis of the utility reports. Stakeholders in this process were:
• British Columbia Old Age Pensioners’ Organization et al. (BCOAPO);
• B.C. Sustainable Energy Association and Sierra Club of British Columbia (BCSEA);
• Commercial Energy Consumers Association of British Columbia (CEC);
• COPE 378;
• Mr. N. Marty;
• Mr. F. Bergdahl;
• Regional District of Mount Waddington;
• Mr. D. Tarris;
• Ms. J. DeCock; and
• Mr. N. Gabana.
Broad public notice was not published at this stage because a public comment period was planned to occur subsequent to the report methodology(ies) being established.
In response to the Commission’s request for comments, by October 16, 2015, BC Hydro and FortisBC provided their proposed methodologies and the following six stakeholders provided submissions in response: BCOAPO; BCSEA; CEC; COPE 378; Mr. N. Gabana; and Mr. N. Marty.[180]
On November 10, 2015, the Commission and Stakeholders asked BC Hydro and FortisBC information requests on their submissions. Responses to information requests and responses to stakeholder comments were received from the utilities on December 18, 2015.[181]
The Commission reviewed the Utilities’ proposed methodologies, submissions from Stakeholders and responses from the Utilities and established specific methodologies and definitions for each of the Minister’s five questions. These methodologies and definitions are set out in Commission letter dated January 19, 2016 attached as Appendix D to this report.
BC Hydro 2015 Rate Design Application Proceeding
Minister Bennett’s letter directed the Commission to “use the 2015 RDA regulatory review as the process to collect information for the report [for BC Hydro], rather than a separate process” and “the [Commission’s report] should be provided to the Government after the evidentiary phase of BC Hydro’s 2015 RDA concludes.”[182]
The evidentiary phase of the BC Hydro Rate Design Application proceeding closed on August 24, 2016 after an oral hearing. The Utilities’ reports were filed with the Commission on September 30, 2016.
1.2 Public comments were sought on the impacts of the RIB rates and the public’s awareness of ways to mitigate the impacts
On July 15, 2016, the Commission established the first phase of public comments directed at the approximately 200 communities without access to natural gas identified by BC Hydro and FortisBC. Public notice of the comment period was initially published in 21 community newspapers and sent to 29 regional districts and 41 municipalities and was set to finish on August 15, 2016. The Commission chose to publish a public notice in specific community newspapers and provided notice to regional districts and municipalities directly in an effort to target the approximately 200 communities identified as having no access to natural gas.
During this time the Commission received comments from the public and stakeholders that the comment period did not provide the public sufficient time to respond and that notice was not published broadly enough. In response, the Commission extended the comment period until September 2, 2016, published notice in seven major newspapers in the province, and contacted an additional four regional districts.
This broadening of the public notice moved the Commission away from an approach targeted at the 200 communities identified. However, the Commission felt this was warranted to gather as broad public input as possible on the impacts of the RIB rates and the ways to mitigate those impacts. Of note is that this broadening of public notice may have resulted in more members of the public with access to natural gas providing comments in this process than the original targeted approach may have.
A complete list of the newspapers, regional districts and municipalities provided public notice is in Appendix F to this report.
1.3 BC Hydro and FortisBC filed their reports on the Minister’s five questions with the Commission
On September 30, 2016, BC Hydro and FortisBC filed their reports on the five questions.
1.4 Public comments were sought on the utility reports.
On October 7, 2016, the Commission established a second public comment phase seeking comments on the utility reports which was open until November 24, 2016.[183] The Commission published public notice of the comment period in 92 community and major newspapers in the province, and sent notice directly to the same 29 regional districts and 41 municipalities as were contacted in the first phase of public comments.[184]
In addition, an email was sent to all parties that commented in the first comment phase (July-September) informing them of the opportunity to comment.[185]
In total over 750 comments were received in this process.[186]
APPENDIX E – DSM funding analysis
BC Hydro
The following data were included in the most recent BC Hydro Revenue Requirements Application (RRA):[187]
Based on the above data, the Commission has created the following tables for analysis:
Table 1: Residential BC Hydro forecast DSM expenditures (F2014-F2016 and F2017-F2019)
|
F14-F16 $’000 |
F17-F19 $’000 |
Variance $’000 |
Variance % |
Residential – low income |
7,647 |
7,802 |
156 |
2% |
Residential – other |
|
|
|
|
• Behaviour |
14,002 |
11,114 |
(2,888) |
(21%) |
• Fridge buy-back |
5,010 |
- |
(5,010) |
(100%) |
• New home |
6,363 |
- |
(6,363) |
(100%) |
• Retail rebate |
12,583 |
8,135 |
(4,447) |
(35%) |
• Home renovation (HERO) |
7,447 |
8,280 |
832 |
11% |
• Sector enabling |
3,784 |
2,552 |
(1,232) |
(33%) |
• Total |
49,188 |
30,081 |
(19,108) |
(39%) |
Total |
56,835 |
37,883 |
(18,952) |
(33%) |
Table 2: BCH awareness/community forecast DSM expenditures (F2014-F2016, F2017-F2019)
|
F14-F16 $’000 |
F17-F19 $’000 |
Variance $’000 |
Variance % |
Public awareness and education |
19,430 |
20,883 |
1,452 |
7% |
Community engagement |
12,302 |
- |
(12,302) |
(100%) |
Total |
31,732 |
20,883 |
(10,849) |
(34%) |
FortisBC
The following data were included in the most recent FortisBC DSM expenditure applications:[188]
Based on the above data, the Commission has created the following table for analysis:
Table 3: Residential FortisBC forecast DSM expenditures (2016 and 2017)
|
2016 $’000 |
2017 $’000 |
Variance $’000 |
Variance % |
Residential – low income and rental |
952 |
1,367 |
415 |
44% |
Residential – other |
|
|
|
|
• Home renovation |
884 |
348 |
(536) |
(61%) |
• Heat pumps (air) |
302 |
298 |
(4) |
(1%) |
• New home |
390 |
151 |
(239) |
(61%) |
• Lighting |
189 |
190 |
1 |
1% |
• Appliances |
96 |
133 |
37 |
39% |
• Water heating |
430 |
30 |
(400) |
(93%) |
• Behavioural |
106 |
200 |
94 |
89% |
• Total |
2,397 |
1,351 |
(1,046) |
(44%) |
Total |
3,349 |
2,718 |
(631) |
(19%) |
1st Public Comment Phase – July 15 – September 2, 2016
Newspapers[189] |
||
100 Mile Free Press |
Kamloops This Week |
Smithers Interior News |
Barriere North Thompson Star Journal |
Kootenay News Advertiser |
Sunshine Coast – The Local |
Bridge River Lillooet News |
Lake Cowichan Gazette |
The Okanagan Sunday |
Burns Lake District News |
Nakusp Arrow Lakes News |
The Province |
Campbell River Mirror |
Nanaimo News Bulletin |
Times Colonist |
Clearwater North Thompson Times |
North Island Gazette |
The Vancouver Sun |
Golden Star |
Northern Connector |
Tofino – Ucluelet Westerly News |
Gulf Islands Driftwood |
Prince George Citizen |
Valley Voice |
Haida Gwaii Observer |
Shuswap Market News |
Williams Lake Cariboo Advisor |
Invermere Valley Echo |
|
|
Regional Districts |
|||||
Alberni Clayoquot |
Fraser-Fort George |
Nanaimo |
|||
Bulkley - Nechako |
Kitimat-Stikine |
Skeena Queen Charlotte |
|||
Capital |
Mount Waddington |
Squamish – Lillooet |
|||
Cariboo |
North Okanagan |
Strathcona |
|||
Central Coast |
Kootenay Boundary |
Sunshine Coast |
|||
Columbia Shuswap |
Peace River – Fort St. John Branch |
Thompson Nicola |
|||
Comox Valley |
Peace River – Head Office |
Northern Rockies |
|||
Cowichan Valley |
Powell River |
Okanagan-Similkameen |
|||
Fraser Valley – Deroche Office |
Central Kootenay |
Central Okanagan |
|||
Fraser Valley – Head Office |
East Kootenay |
|
|||
Municipalities[190] |
|||||
Alert Bay |
Barriere |
Bowen Island |
Canal Flats |
||
Clearwater |
Gingolx(Kincolith) |
Gitsegukla |
Gold River |
||
Golden |
Granisle |
Hazelton |
Invermere |
||
Kispiox |
Lake Cowichan |
Laxgalt’sap (Greenville) |
Lillooet |
||
Lions Bay |
Lytton |
Manning Park |
Masset |
||
Nakusp |
New Denver |
New Hazelton |
Pemberton |
||
Port Clements |
Port Hardy |
Port McNeill |
Powell River |
||
Queen Charlotte |
Radium Hot Springs |
Sayward |
Sicamous |
||
Silverton |
Stewart |
Tahsis |
Takla |
||
Tl’azt’en Nation (Tahcie Reserve) |
Tofino |
Ucluelet |
Valemount |
||
Wells |
|
|
|
||
2nd Public Comment Phase – October 7 – November 24, 2016
Newspapers |
|||
100 Mile House Free Press |
Abbotsford News |
Agassiz-Harrison Observer |
Alberni Valley News |
Aldergrove Star |
Ashcroft Cache Creek Journal |
Barriere N. Thompson Star Journal |
Bridge River Lillooet News |
Burns Lake District News |
Campbell River Mirror |
Castlegar News |
Chilliwack Progress |
Chilliwack Times |
Clearwater N. Thompson Times |
Cloverdale Reporter |
Comox Valley Echo |
Comox Valley Record |
Cranbrook Kootenay News Advertiser |
Cranbrook Townsman |
Creston Valley Advance |
Duncan Cowichan Valley Citizen |
Fernie Free Press |
Fort St. James Caledonia Courier |
Golden Star |
Goldstream News Gazette |
Grand Forks Gazette |
Greenwood Boundary Creek Times |
Haida Gwaii Observer |
Hope Standard |
Houston Today |
Invermere Valley Echo |
Island Tides |
Kamloops This Week |
Kelowna Capital News |
Keremeos Review |
Kimberley Bulletin |
Kitimat Northern Sentinel |
Ladysmith Chronicle |
Lake Cowichan Gazette |
Lakeshore News- Salmon Arm |
Langley Advance |
Langley Times |
Maple Ridge/Pitt Meadows News |
MapleRidge Times |
Merritt Herald |
Mission City Record |
Nakusp Arrow Lakes News |
Nanaimo News Bulletin |
Nelson Star |
North Delta Reporter |
North Island Gazette |
Northern Connector |
Oak Bay News |
Okanagan Valley |
Oliver Chronicle |
Osoyoos Times |
Parksville Qualicum News |
Peace Arch News |
Peachland View |
Peninsula News Review |
Penticton Western News |
Prince George Citizen |
Prince Rupert Northern View |
Princeton Similkameen Spotlight |
Quesnel Cariboo Observer |
Revelstoke Times Review |
Rossland News |
Saanich News |
Salmon Arm Observer/Market News |
Sicamous Eagle Valley News |
Smithers Interior News |
Sooke News Mirror |
Summerland Review |
Sunshine Coast - The Local |
Surrey/N. Delta Leader |
Surrey/N. Delta Now |
Terrace Standard |
The Province |
Times Colonist |
Tofino/Ucluelet Westerly News |
Trail Times |
Valemount Valley Sentinel |
Valley Voice |
Vancouver Sun |
Vanderhoof Omineca Express |
Vernon Morning Star |
Victoria News |
Stuart/Nechako Advertiser |
West Kootenay Advertiser |
Williams Lake Tribune Weekend Advisor |
Williams Lake Tribune |
Winfield Lake Country Calendar |
The regional districts and municipalities identified in the 1st public comment phase were sent public notice in the 2nd public comment phase.[191]
APPENDIX G – List of Communities without access to natural gas
In conjunction with Fortis BC, BC Hydro has identified customers in the following communities without access to natural gas for the purpose of analysis for its RIB Report.[192]
The list of communities in the FortisBC service area identified as lacking natural gas service is below:[193]
[1] Minister Bennett, Letter to BCUC, July 6, 2015, p. 1 [Attached as Appendix B to this Report].
[2] Ibid.
[3] Ibid., p. 2.
[4] Exhibit A-1, p. 2.
[5] Commission Decision on BC Hydro Application for approval of rates between BC Hydro and FortisBC with regards to RS 3808 dated May 6, 2014 (G-60-14), p. 39.
[6] Ibid.
[7] Commission Reasons for Decision on an Application by FortisBC for a Rate Design on the Big White Supply Project dated August 7, 2009 (G-87-07), pp. 1, 6, 15.
[8] BC Hydro RIB Report, pp. 9, 16.
[9] FortisBC RIB Report, pp. 5, 7.
[10] Average rate of 12.82c/kWh, divided by the long-run marginal cost estimate of 11.196 c/kWh (FBC Report, p. 7).
[11] Average rate of 12.52c/kWh, divided by the long-run marginal cost estimate of 11.196 c/kWh (FBC Report, p. 7).
[12] FortisBC 2009 Rate Design Application, Exhibit B-9, Appendix A, pp. 18, 31; BC Hydro 2015 Rate Design Application, Cost of Service Study and Rate Class Segmentation Negotiated Settlement Agreement (G-47-16), Appendix A, pp. 33, 39.
[13] 1958 CarswellBC 37.
[14] BC Hydro 2015 Rate Design Application, BC Hydro Final Argument dated September 26, 2016, pp. 88–89.
[15] BC Hydro RIB Report p. 8.
[16] BCSEA November 24, 2016 submission, p. 4; BCOAPO November 24, 2016 submission p. 4.
[17] FortisBC RIB Report, p. 6.
[18] BCSEA November 24, 2016 submission, p. 8.
[19] BCSEA November 24, 2016 submission, pp. 1, 2.
[20] BCSEA November 24, 2016 submission, pp. 1-4. Emphasis in original.
[21] BC Hydro 2016 flat rate energy charge for exempt residential customers is 9.93 ₵/kWh, compared to the RIB Step 1 residential energy charge of 8.29 ₵/kWh. FortisBC 2016 flat rate energy charge for exempt residential customers is 11.433 ₵/kWh, compared to the RIB Step 1 residential energy charge of 9.845 ₵/kWh.
[22] BCOAPO November 24, 2016 submission p. 6.
[23] RDMW November 18, 2016 submission, p. 1; Marty October 19, 2016 submission, pdf p. 14; DeCock November 1, 2016 submission, p. 4.
[24] RDMW November 18, 2016 submission, p. 1.
[25] Marty November 29, 2016 submission, pdf p. 3.
[26] DeCock November 1 submission, p. 2.
[27] FortisBC RIB Report, p. 5.
[28] Per billing period (two months).
[29] Average annual FortisBC residential consumption is 11,500 kWh per year (FortisBC RIB Report, p. 11), or 1,917 kWh per billing period (assuming flat load).
[30] RIB rate less flat rate.
[31] BC Hydro’s April 1, 2016 RIB rate: basic charge: 18.35₵/day, first 1,350 kWh/two months at 8.29₵/kWh, balance at 12.43₵/kWh. RIB bill for consumption of 2,300kWh/billing period: $235.52. BC Hydro’s April 1, 2016 flat rate: basic charge: 19.57₵/day, 9.93₵/kWh. Flat rate bill for consumption of 2,300kWh/billing period: $234.26.
[32] BC Hydro RIB Report, p. 19.
[33] BC Hydro RIB Report, p. 20.
[34] 15 (6+9) customers with bill impacts > 10% out of a total of 155 (61+94) customers = 9.7%
[35] 101 (41+60) customers with lower annual RIB bills out of a total of 155 (61+94) = 65.2%
[36] BCSEA November 24, 2016 submission, pp. 8–10.
[37] BCOAPO November 24, 2016 submission, pp. 7, 8.
[38] Marty October 19, 2016 submission, pdf pp. 3, 4.
[39] Ibid., pdf pp. 15, 16.
[40] RDMW November 18 2016 submission, p. 2.
[41] DeCock November 29, 2016 submission on BCOAPO utility report comments, pdf p. 2.
[42] BC Hydro RIB Report, p. 26.
[43] Ibid., pp. 24, 25, 35.
[44] Ibid., pp. 31, 32.
[45] BC Hydro RIB Report, p. 36, Table 21.
[46] Ibid., pp. 32, 33.
[47] Ibid., pp. 24–25.
[48] BC Hydro RIB Report, p. 24.
[49] Ibid., Appendix C, pp. 1, 3.
[50] FortisBC RIB Report, p. 11.
[51] FortisBC RIB Report, p. 12.
[52] Ibid., pp. 12, 13, 17.
[53] Ibid., p. 13.
[54] FortisBC RIB Report, p.14.
[55] Ibid., p. 15.
[56] Ibid., pp. 16, 17.
[57] FortisBC RIB Report, p. 19.
[58] BCSEA November 24, 2016 submission, pp. 11, 12.
[59] RDMW November 18, 2016 submission, p. 2.
[60] DeCock November 1, 2016 submission, p. 5.
[61] Marty submits that, according to data provided by the Office of Energy Efficiency, for 2013 residential energy use in BC can be attributed to the following factors: space heating (52.8%), water heating (24.5%), appliances (16.9%), lighting (5.5%), and space cooling (0.4%). Marty, October 19, 2016 submission, pdf p. 11.
[62] FortisBC RIB Rate Report, p. 22.
[63] BC Hydro RIB Rate Report, p. 39.
[64] Marty, October 19, 2016 submission, pdf p. 12.
[65] BCOAPO November 24, 2016 submission, pp. 3–4.
[66] Ibid., p. 12.
[67]BC Hydro: https://www.bchydro.com/powersmart/residential/savings-and-rebates/current-rebates-buy-backs.html
FortisBC: https://www.fortisbc.com/Rebates/RebatesOffers/Pages/Results.aspx?type=homes&city=Kelowna
[68] BC Hydro RIB rate report, p.41, FortisBC RIB rate report, p. 23.
[69] From Table 14 bill savings: BCH home renovation ($430/year) + behavioural ($60/year) + lighting ($15/year) = $505/year.
[70] From Table 14 customer cost: BCH home renovation ($3,650) + behavioural ($0) + lighting ($30) = $3,680. Payback is $3,680/$505 = 7.3 years.
[71] From Table 14 bill savings: FBC home renovation ($290/year) + behavioural ($60/year) + lighting ($18/year) = $368/year. From Table 14 customer cost: FBC home renovation ($1,706) + behavioural ($0) + lighting ($30) = $1,736. Payback is $1,736/$368 = 4.7 years.
[72] Source: Table 14.
[73] https://www.bchydro.com/powersmart/residential/savings-and-rebates/savings-based-on-income.html
[74] BC Hydro RIB rate report, p.41, FortisBC RIB rate report, p. 23.
[75] Energy Conservation Assistance Program.
[76] To qualify maximum income ranges from $32,000 for a one person household, to $84,600 for a household of seven or more.
[77] FortisBC RIB Report, p.16.
[78] BC Hydro RIB Report, p.25.
[79] BCH 2017-2019 Revenue Requirements Application (RRA) proceeding, Exhibit B-9, BCUC IR 184.6.
[80] FBC 2017 DSM Expenditures Order and Reasons for Decision (G-9-17), p. 6; Application, p. A2.
[81] FBC 2017 DSM Expenditures Order and Reasons for Decision (G-9-17), p. 6; BCH 2017-2019 RRA, Exhibit B-9, BCUC IR 172.1.
[82] BC Hydro RIB Report, pp. 41, 42.
[83] BCSEA November 24, 2016 submission, p. 14; BCOAPO November 24, 2016 submission, pp. 13–15.
[84] BCOAPO November 24, 2016 submission, p. A-2.
[85] BCOAPO November 24, 2016 submission, pp. 12, 13.
[86] RDMW November 18, 2016 submission p. 3.
[87] BCOAPO November 24, 2016 submission, pp. A-4 – A-6.
[88] Ibid., p. 15.
[89] Marty October 19, 2016 submission, pdf p. 17.
[90] BC Hydro F2017–F2019 Revenue Requirements Application (RRA) proceeding, Exhibit B-9, BCUC IR 176.1.
[91] Ibid., BCUC IR 172.1, 184.6, Exhibit B-1-1, p. 10-43.
[92] BC Hydro RIB Rate Report, pp. 44, 45.
[93] FortisBC RIB Rate Report, pp. 24, 25.
[94] FBC 2017 DSM Expenditures Order and Reasons for Decision (G-9-17), pp. 6, 10.
[95] BCSEA November 24, 2016 submission, pp. 14, 15.
[96] BCOAPO November 24, 2016 submission, pp. 17, 18.
[97] Ibid.
[98] Marty October 19, 2016 submission, pdf p. 17.
[99] Marty October 15, 2015 submission, p. 3.
[100] RDMW November 18, 2016 submission p. 3.
[101] Mathes, A. Letter of Comment E-226, August 15, 2016.
[102] English, F. Letter of Comment E-214, August 24, 2016.
[103] Barlow, W. Letter of Comment E-26, August 2, 2016.
[104] Arnott, C&B. Letter of Comment E-320, September 2, 2016.
[105] Sharp, S Letter of Comment E-92 dated August 11, 2016.
[106] MacKinnon, S Letter of Comment E-128 dated August 14, 2016.
[107] McGinnigle, J. Letter of Comment E-218, August 25, 2016.
[108] Marty, N. Letter of Comment E-154, August 17, 2016.
[109] Work, M. Letter of Comment E-290, August 31, 2016.
[110] Underwood, J Letter of Comment E-528 dated November 19, 2016 .
[111] Manea, B and Wiener, S. Letter of Comment E-107 dated August 12, 2016.
[112] Comeau, M. Letter of Comment E-51 dated August 8, 2016.
[113] Jones, R. Letter of comment E-68, August 10, 2016.
[114] Armour, K. Letter of Comment E-410, October 21, 2016.
[115] Montogmery, G., Letter of Comment E-63 dated August 9, 2016.
[116] McInnes, C. Letter of Comment E-408 dated October 20, 2016.
[117] Marty, N. Letter of Comment E-154 dated August 17, 2016.
[118] Sexsmith, F Letter of Comment E-24 dated July 29, 2016.
[119] Rudzcki, D Letter of Comment E-13 dated July 25, 2016.
[120] Day, M Letter of Comment E-50 dated August 8, 2016.
[121] Gabelhouse, R. & J. Letter of Comment E-6 dated July 21, 2016.
[122] DeCock, J. Letter of Comment E-256 dated August 28, 2016.
[123] Mennie, S. Letter of Comment E-396 dated October 18, 2016.
[124] Jevons. Letter of Comment E-416 dated October 17, 2016.
[125] Rodall, A. Letter of Comment E-503 dated November 7, 2016.
[126] Alden, J Letter of Comment E-530 dated November 16, 2016.
[127] Shipway, D Letter of Comment E-44 dated August 6, 2016.
[128] Benedet, A Letter of Comment E-174 dated August 21, 2016.
[129] Cline, B. Letter of Comment E-48 dated August 5, 2016.
[130] Milburn, M Letter of Comment E-534 dated November 15, 2016.
[131] McGovern, P Letter of Comment E-111 dated August 12, 2016.
[132] Hunt, G. Letter of Comment E-547 dated November 21, 2016.
[133] McGinnigle, J. Letter of Comment E-218 dated August 25, 2016.
[134] McKenney, M. Letter of Comment E-16 dated July 22, 2016.
[135] Marty, N. Letter of Comment E-154 dated August 17, 2016.
[136] Forster, R. Letter of Comment E-66 dated August 9, 2016.
[137] Wright, J. Letter of Comment E-60 dated August 8, 2016.
[138] Leffingwell, G. Letter of Comment E-58 dated August 8, 2016.
[139] Spring, C. Letter of Comment E-189 dated August 22, 2016.
[140] Shead, R. Letter of Comment E-432 dated October 23, 2016.
[141] Collins, J. Letter of comment E-105 dated July 22, 2016.
[142] Seghal, A. Letter of Comment E-5 dated July 20, 2016.
[143] Nott, R. Letter of Comment E-440 dated October 25, 2016.
[144] Hollo, T., Letter of Comment E-18 dated July 29, 2016.
[145] Rockandel, C. Letter of Comment E-417 dated October 20, 2016.
[146] Abbott, R. Letter of Comment E-525 dated November 20, 2016.
[147] Finlay, R. Letter of Comment E-242 dated August 29, 2016.
[148] Atkins, A. Letter of Comment E-94 dated August 11, 2016.
[149] McKenney, M. Letter of Comment E-16 dated July 22, 2016.
[150] Dickson, D. Letter of Comment E-112 dated August 12, 2016.
[151] Martineau M., Letter of Comment E-3 dated July 18, 2016.
[152] Belsher, S. Letter of Comment E-310 dated September 1, 2016.
[153] Vaughan, R, Letter of Comment E-10 dated July 22, 2016.
[154] Beckmann, S. Letter of Comment E-98 dated August 11, 2016.
[155] Brazeau, P. Letter of Comment E-233 dated August 27, 2016.
[156] Sterne, D Letter of Comment E-483 dated November 8, 2016.
[157] Langager, K Letter of Comment E-418 dated October 21, 2016.
[158] Harley, N Letter of Comment E-527 dated November 18, 2016.
[159] Rhebergen, F Letter of Comment E-398 dated October 19, 2016.
[160] Wardle, R Letter of Comment E-200 dated August 18, 2016.
[161] Gauthier, J. Letter of Comment E-279 dated August 31, 2016.
[162] Abbott, R. Letter of Comment E-525 dated November 20, 2016.
[163] Bailey, T Letter of Comment E-36 dated August 5, 2016.
[164] Wilki Walker, S. Letter of Comment E-338 dated September 2, 2016.
[165] Bailey, T. Letter of Comment E-36 dated August 5, 2016.
[166] King, G. Letter of Comment E-38 dated August 7, 2016.
[167] Dickson, D. Letter of Comment E-112 dated August 12, 2016.
[168] Hall, C. Letter of Comment E-9 dated July 23, 2016.
[169] Walker, S. Letter of Comment E-338 dated September 2, 2016.
[170] McGinnigle, J. Letter of Comment E-218 dated August 25, 2016.
[171] Seghal, A. Letter of Comment E-5 dated July 20, 2016.
[172] Bergendahl, F. Letter of Comment E-21 dated July 31, 2016.
[173] Pflueger, D Letter of Comment E-425 dated October 21, 2016.
[174] Pelletier, R Letter of Comment E-143 dated August 15, 2016.
[175] Turnbull, J Letter of Comment E-287 dated August 31, 2016.
[176] George, D Letter of Comment E-308 dated September 1, 2016.
[177] Renneberg, S Letter of Comment E-395 dated October 17, 2016.
[178] Rhebergen, F Letter of Comment E-398 dated October 19, 2016.
[179] As this process was an information-gathering process and not a hearing, the process included “stakeholders” rather than “interveners” (Exhibit A-1).
[180] Exhibit A-9, p. 1.
[181] Exhibit A2-2, FortisBC IR Responses December 17, 2015.
[182] Minister Bennett, Letter to BCUC, July 6, 2015, p.2 (Attached as Appendix x to this Report).
[183] Exhibit A-20, p. 1.
[184] Exhibit A-21, pp. 1–2.
[185] Exhibit A-20-1.
[186] Of the total received by the Commission, 669 were submitted with the customer’s consent to have the letter posted to the public record. The Commission is not able to publish the remaining approximately 85 comments due to the customer’s lack of consent to have their letter published but has reviewed them in developing the public comment themes. Thus 669 letters of comment are available for viewing on the Commission’s website; 380 of which were published in phase one and 287 in phase two.
[187] BC Hydro 2017-2019 Revenue Requirements Application (RRA) proceeding, Exhibit B-9, BCUC IR 184.6
[188] FortisBC 2017 DSM Expenditures Order and Reasons for Decision (G-9-17), p. 6, FortisBC 2017 DSM Expenditures Application, p. A2.
[189] Exhibits A-13, A-14.
[190] Exhibit A-21.
[191] Exhibit A-21. Note: Exhibit A-20 states that the list of Regional Districts in included. Unfortunately this list was inadvertently omitted from that exhibit. The full list is included here.
[192] BC Hydro RIB Report, Appendix A.
[193] FBC RIB Report, p. 4.
